12-12

Specifications/Fuses and circuits

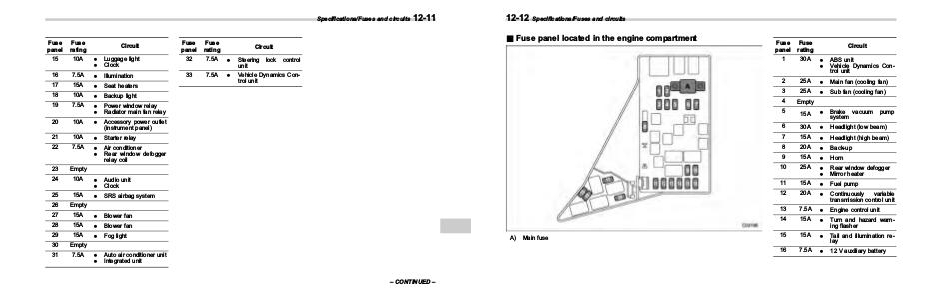

& Fuse panel located in the engine compartment

Fuse
panel

Fuse
rating

1

30A

.
.

ABS unit
Vehicle Dynamics Control unit

2

25A

.

Main fan (cooling fan)

3

25A

.

Sub fan (cooling fan)

4

Empty
15A

.

Brake vacuum
system

6

30A

.

Headlight (low beam)

7

15A

.

Headlight (high beam)

8

20A

.

Back-up

9

15A

.

Horn

10

25A

.
.

Rear window defogger
Mirror heater

5

A)

Main fuse

Circuit

pump

11

15A

.

Fuel pump

12

20A

.

Continuously
variable
transmission control unit

13

7.5A

.

Engine control unit

14

15A

.

Turn and hazard warning flasher

15

15A

.

Tail and illumination relay

16

7.5A

.

12 V auxiliary battery
