3-48
Instruments and controls/Multi function display
temperature has increased to 418F
(58C) or higher.
! Top display
One of the following items can be displayed on the top display.
. Average fuel consumption corresponding to the driving distance of each trip
meter
. Current fuel consumption (This may
not be displayed when driving at a low
speed.)
. Driving range on remaining fuel
For details about the setting of the top
display, refer to “Top display setting” F366.
NOTE
The driving range on the remaining fuel
is calculated using the average fuel
consumption of the last 19 miles (30
km) driven. This value may be different
from the values calculated using the
average fuel consumption corresponding to the driving distance of each trip
meter or the current fuel consumption.
! Clock
The clock can be displayed in either 12hour display or 24-hour display. For details
about the setting, refer to “Current date
and time setting” F3-57.

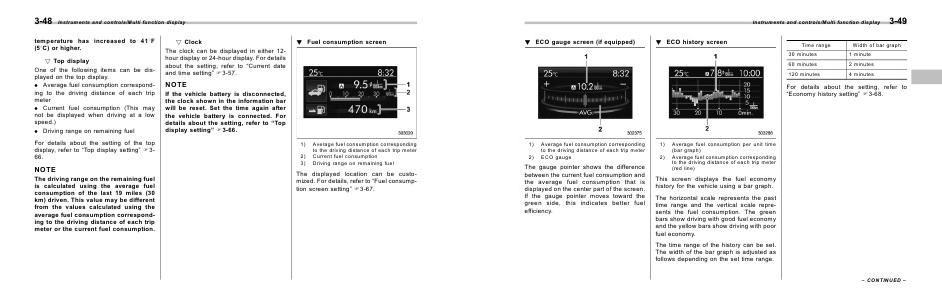

! Fuel consumption screen
NOTE
If the vehicle battery is disconnected,
the clock shown in the information bar
will be reset. Set the time again after
the vehicle battery is connected. For
details about the setting, refer to “Top
display setting” F3-66.
1)
2)
3)
Average fuel consumption corresponding
to the driving distance of each trip meter
Current fuel consumption
Driving range on remaining fuel
The displayed location can be customized. For details, refer to “Fuel consumption screen setting” F3-67.
