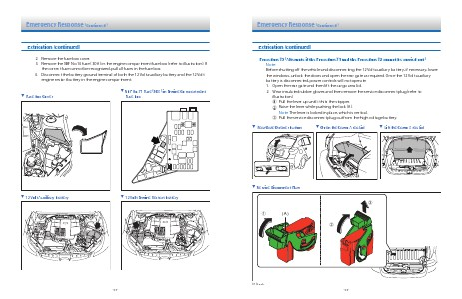

Emergency Response (Continued)
Extrication (Continued)
Procedure#3 (Alternate if the Procedure#1 and the Procedure#2 cannot be carried out)
Note:
Before shutting off the vehicle and disconnecting the 12 Volt auxiliary battery, if necessary, lower
the windows, unlock the doors and open the rear gate as required. Once the 12 Volt auxiliary
battery is disconnected, power controls will not operate.
1. Open the rear gate and then lift the cargo area lid.
2. Wear insulated rubber gloves and then remove the service disconnect plug (refer to
illustration).
① Pull the lever up until it hits the stopper.
② Raise the lever while pushing the lock (A).
Note: The lever is locked in place, which is vertical.
③ Pull the service disconnect plug out from the high voltage battery.
 Rear Gate Opener Button

 Open the Cargo Area Lid

 Service Disconnect Plug

(A)

(A) Lock
-34-

 Lift the Cargo Area Lid
