368

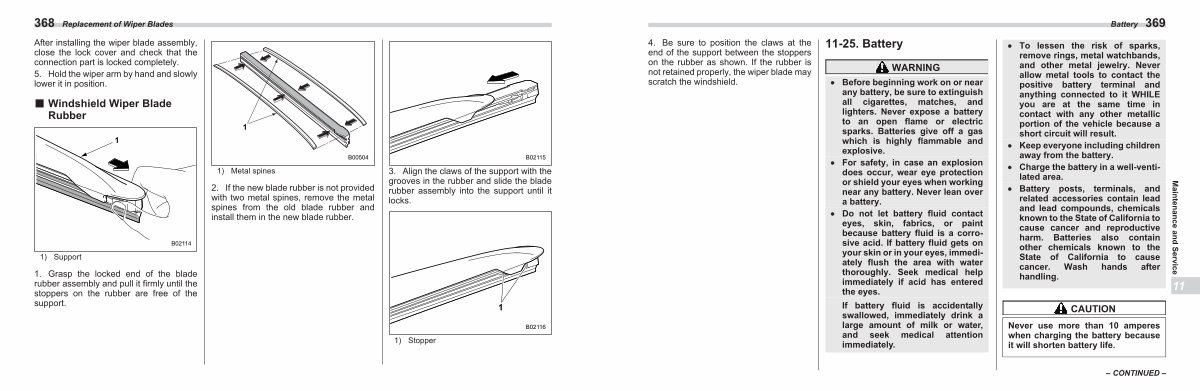

Replacement of Wiper Blades
After installing the wiper blade assembly, close the lock cover and check that the connection part is locked completely.
5. Hold the wiper arm by hand and slowly lower it in position. ■ Windshield Wiper Blade Rubber
1
1
1) Metal spines
B00504 2. If the new blade rubber is not provided with two metal spines, remove the metal spines from the old blade rubber and install them in the new blade rubber.
3 g ru lo
B02114
1) Support
1. Grasp the locked end of the blade rubber assembly and pull it firmly until the stoppers on the rubber are free of the support.
