If you cannot eliminate the streaking even after following this method, replace the wiper blades using the following procedures.

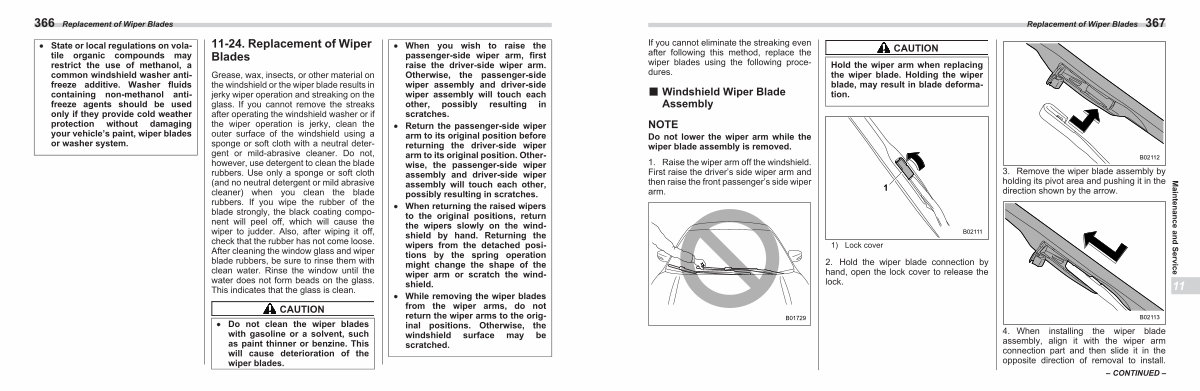

■ Windshield Wiper Blade Assembly
NOTE
Do not lower the wiper arm while the wiper blade assembly is removed.
1. Raise the wiper arm off the windshield. First raise the driver’ s side wiper arm and then raise the front passenger’ s side wiper arm.
CAUTION
Hold the wiper arm when replacing the wiper blade. Holding the wiper blade, may result in blade deformation.
1
1) Lock cover
B02111
2. Hold the wiper blade connection by hand, open the lock cover to release the lock.
B01729
