BRZ _ U. book 286 ページ 2024 年 6 月 14 日 金曜日 午前 9 時 14 分
286

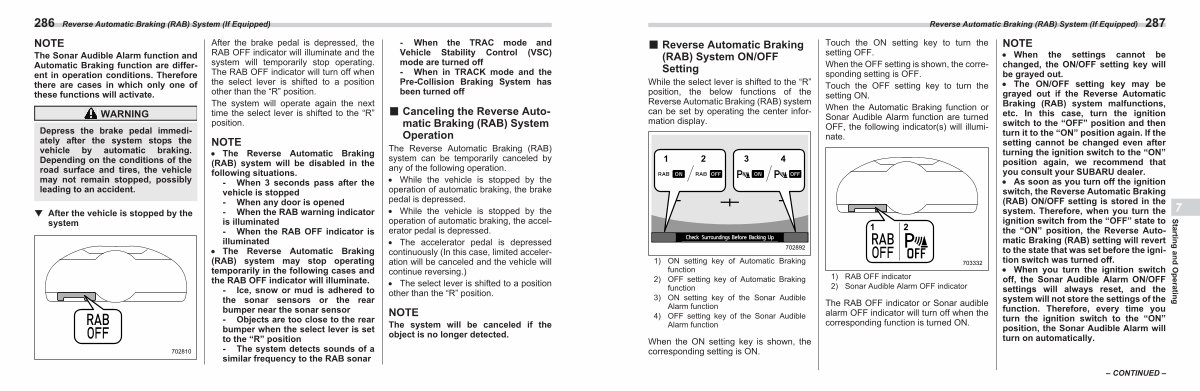

Reverse Automatic Braking( RAB) System( If Equipped) NOTE The Sonar Audible Alarm function and Automatic Braking function are different in operation conditions. Therefore there are cases in which only one of these functions will activate. WARNING
Depress the brake pedal immediately after the system stops the vehicle by automatic braking. Depending on the conditions of the road surface and tires, the vehicle may not remain stopped, possibly leading to an accident.
▼ After the vehicle is stopped by the system
702810
After the brake pedal is depressed, the RAB OFF indicator will illuminate and the system will temporarily stop operating. The RAB OFF indicator will turn off when the select lever is shifted to a position other than the“ R” position.
The system will operate again the next time the select lever is shifted to the“ R” position. NOTE
� The Reverse Automatic Braking( RAB) system will be disabled in the following situations.- When 3 seconds pass after the vehicle is stopped- When any door is opened- When the RAB warning indicator is illuminated- When the RAB OFF indicator is illuminated � The Reverse Automatic Braking( RAB) system may stop operating temporarily in the following cases and the RAB OFF indicator will illuminate.- Ice, snow or mud is adhered to the sonar sensors or the rear bumper near the sonar sensor- Objects are too close to the rear bumper when the select lever is set to the“ R” position- The system detects sounds of a similar frequency to the RAB sonar
■
T s a
� o p
� o e
� c a c
� o
N
T o
