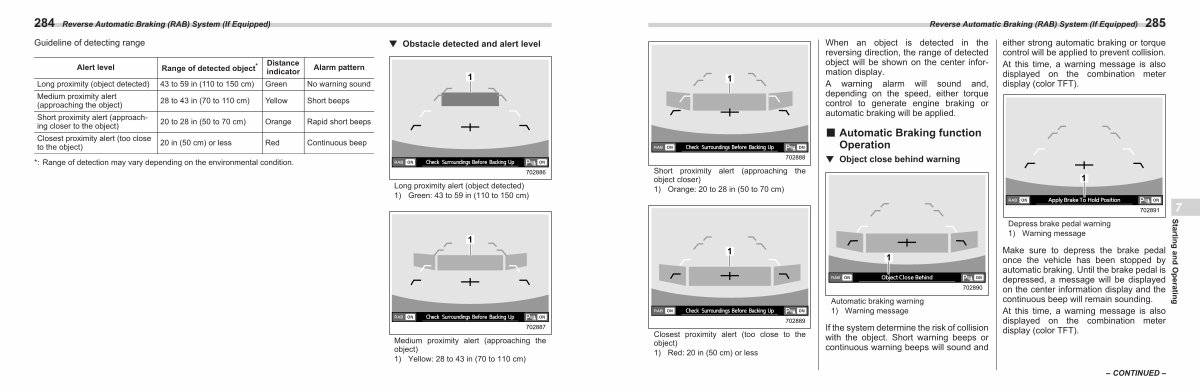

Reverse Automat 1
When an object is detected in the reversing direction, the range of detected object will be shown on the center information display.
A warning alarm will sound and, depending on the speed, either torque control to generate engine braking or automatic braking will be applied. 702888
Short proximity alert( approaching the object closer)
1) Orange: 20 to 28 in( 50 to 70 cm)
■ Automatic Braking function Operation
▼ Object close behind warning 1 1
702889
Closest proximity alert( too close to the object)
1) Red: 20 in( 50 cm) or less
Automatic braking warning 1) Warning message
702890
If the system determine the risk of collision with the object. Short warning beeps or continuous warning beeps will sound and
