282

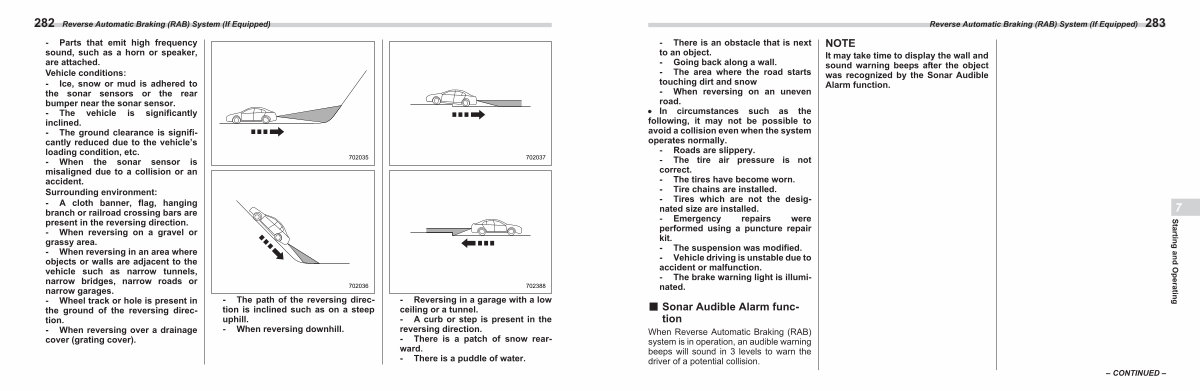

Reverse Automatic Braking( RAB) System( If Equipped)
- Parts that emit high frequency sound, such as a horn or speaker, are attached.
Vehicle conditions:
- Ice, snow or mud is adhered to the sonar sensors or the rear bumper near the sonar sensor.- The vehicle is significantly inclined.- The ground clearance is significantly reduced due to the vehicle’ s loading condition, etc.- When the sonar sensor is misaligned due to a collision or an accident.
Surrounding environment:
- A cloth banner, flag, hanging branch or railroad crossing bars are present in the reversing direction.- When reversing on a gravel or grassy area.- When reversing in an area where objects or walls are adjacent to the vehicle such as narrow tunnels, narrow bridges, narrow roads or narrow garages.- Wheel track or hole is present in the ground of the reversing direction.- When reversing over a drainage cover( grating cover). 702035 702036
- The path of the reversing direction is inclined such as on a steep uphill.- When reversing downhill.
