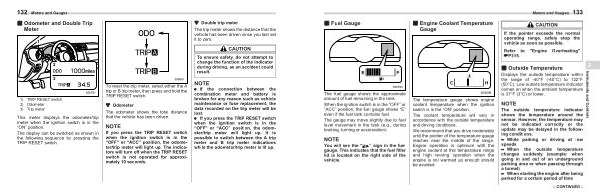

Meters and Gauges ■ Odometer and Double Trip Meter
1
▼
T v it 2
3
1 ) |
TRIP RESET switch |
2 ) |
Odometer |
3 ) |
Trip meter |
306781
This meter displays the odometer / trip meter when the ignition switch is in the “ ON ” position .
The display can be switched as shown in the following sequence by pressing the TRIP RESET switch .
306961
To reset the trip meter , select either the A trip or B trip meter , then press and hold the TRIP RESET switch .
▼ Odometer
The odometer shows the total distance that the vehicle has been driven .
NOTE
If you press the TRIP RESET switch when the ignition switch is in the “ OFF ” or “ ACC ” position , the odometer / trip meter will light up . The indicators will turn off when the TRIP RESET switch is not operated for approximately 10 seconds .
