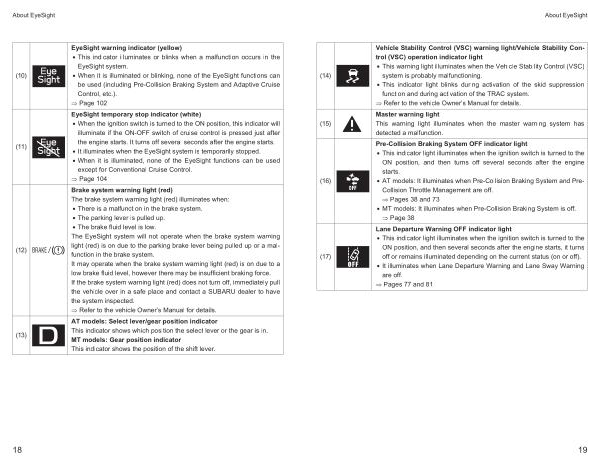

About EyeSight
( 10 )
( 11 )
( 12 )
( 13 )
EyeSight warning indicator ( yellow )
• This indicator illuminates or blinks when a malfunction occurs in the EyeSight system .
• When it is illuminated or blinking , none of the EyeSight functions can be used ( including Pre-Collision Braking System and Adaptive Cruise Control , etc .).
� Page 102
EyeSight temporary stop indicator ( white )
• When the ignition switch is turned to the ON position , this indicator will illuminate if the ON-OFF switch of cruise control is pressed just after the engine starts . It turns off several seconds after the engine starts .
• It illuminates when the EyeSight system is temporarily stopped .
• When it is illuminated , none of the EyeSight functions can be used except for Conventional Cruise Control .
� Page 104 Brake system warning light ( red ) The brake system warning light ( red ) illuminates when :
• There is a malfunction in the brake system .
• The parking lever is pulled up .
• The brake fluid level is low . The EyeSight system will not operate when the brake system warning light ( red ) is on due to the parking brake lever being pulled up or a malfunction in the brake system . It may operate when the brake system warning light ( red ) is on due to a low brake fluid level , however there may be insufficient braking force . If the brake system warning light ( red ) does not turn off , immediately pull the vehicle over in a safe place and contact a SUBARU dealer to have the system inspected .
� Refer to the vehicle Owner ’ s Manual for details . AT models : Select lever / gear position indicator This indicator shows which position the select lever or the gear is in . MT models : Gear position indicator This indicator shows the position of the shift lever .
18
