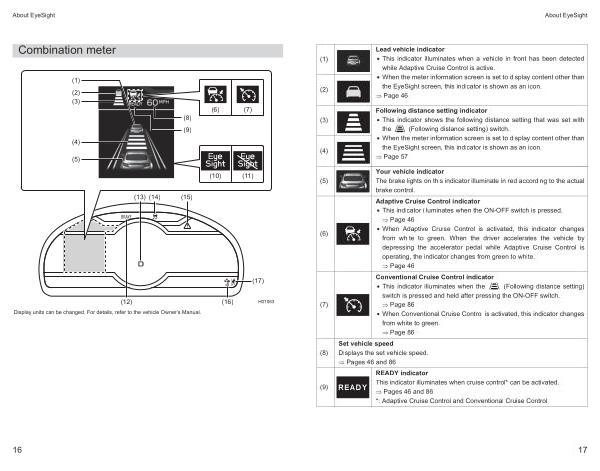

About EyeSight
( 1 )
( 2 )
( 3 )
( 4 )
( 5 )
( 6 )
( 7 )
( 8 )
( 9 )
Lead vehicle indicator
• This indicator illuminates when a vehicle in front has been detected while Adaptive Cruise Control is active .
• When the meter information screen is set to display content other than the EyeSight screen , this indicator is shown as an icon .
� Page 46
Following distance setting indicator
• This indicator shows the following distance setting that was set with the ( Following distance setting ) switch .
• When the meter information screen is set to display content other than the EyeSight screen , this indicator is shown as an icon .
� Page 57
Your vehicle indicator The brake lights on this indicator illuminate in red according to the actual brake control . Adaptive Cruise Control indicator
• This indicator illuminates when the ON-OFF switch is pressed .
� Page 46
• When Adaptive Cruise Control is activated , this indicator changes from white to green . When the driver accelerates the vehicle by depressing the accelerator pedal while Adaptive Cruise Control is operating , the indicator changes from green to white .
� Page 46
Conventional Cruise Control indicator
• This indicator illuminates when the ( Following distance setting ) switch is pressed and held after pressing the ON-OFF switch .
� Page 86
• When Conventional Cruise Control is activated , this indicator changes from white to green .
� Page 86 Set vehicle speed Displays the set vehicle speed .
� Pages 46 and 86 READY indicator This indicator illuminates when cruise control * can be activated .
� Pages 46 and 86 *: Adaptive Cruise Control and Conventional Cruise Control
17
