152

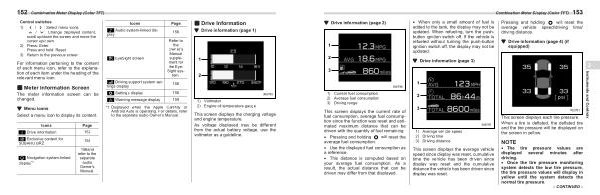

Combination Meter Display ( Color TFT )
Control switches |
1 ) |
/ |
: Select menu icons� |
|
/ |
: Change displayed content , |
scroll up / down the screen and move the |
cursor up / down |
2 ) |
Press : Enter� |
Press and hold : Reset |
3 ) |
Return to the previous screen |
For information pertaining to the content of each menu icon , refer to the explanation of each item under the heading of the relevant menu icon .
■ Meter Information Screen
The meter information screen can be changed .
Icons Page
Audio system-linked display
156
Refer to the Owner ’ s Manual
EyeSight screen supplement for the Eye- Sight system .
Driving support system settings display
156
Settings display 156 Warning message display 158
■
▼ ▼ Menu icons Select a menu icon to display its content .
Icons |
Page |
Drive information |
152 |
|
Exclusive content for
SUBARU BRZ
|
154 |
Navigation system-linked display * 1
156and refer to the separate audio Owner ’ s Manual .
* 1 : Displayed when the Apple CarPlay or Android Auto is operating . For details , refer to the separate audio Owner ’ s Manual .
