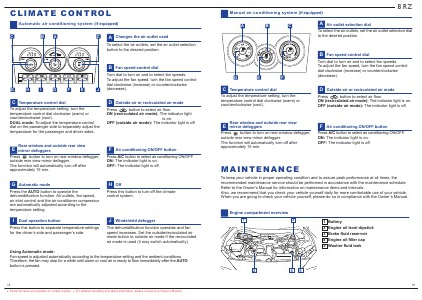

CLIMATE CONTROL
Automatic air conditioning system (if equipped)
C
B
A
C
A
Changes the air outlet used
To select the air outlets, set the air outlet selection
button to the desired position.
B
G
C
H
I
D
F
E
J
Temperature control dial
To adjust the temperature setting, turn the
temperature control dial clockwise (warm) or
counterclockwise (cool).
DUAL mode: To adjust the temperature control
dial on the passenger side to separately adjust the
temperature for the passenger and driver sides.
Rear window and outside rear view
mirror defoggers
Press
button to turn on rear window defogger,
outside rear view mirror defogger.
The function will automatically turn off after
approximately 15 min.
E
G
Automatic mode
Press the AUTO button to operate the
dehumidification function. Air outlets, fan speed,
air inlet control and the air conditioner compressor
are automatically adjusted according to the
temperature setting.
I
Dual operation button
Press this button to separate temperature settings
for the driver’s side and passenger’s side.
Fan speed control dial
Turn dial to turn on and to select fan speeds.
To adjust the fan speed, turn the fan speed control
dial clockwise (increase) or counterclockwise
(decrease).
D
Outside air or recirculated air mode
Press
button to select air flow.
ON (recirculated air mode N
