82
Child restraint systems

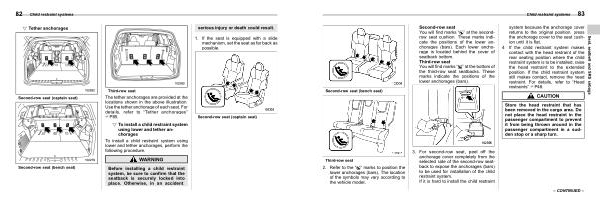

! Tether anchorages
S01AG070102 serious injury or death could result.
1. If the seat is equipped with a slide mechanism, set the seat as far back as possible.
Second-row seat( captain seat)
Second-row seat( bench seat)
Third-row seat
The tether anchorages are provided at the locations shown in the above illustration. Use the tether anchorage of each seat. For details, refer to“ Tether anchorages” FP85.
! To install a child restraint system using lower and tether anchorages
S01AG070103
To install a child restraint system using lower and tether anchorages, perform the following procedure.
WARNING
Before installing a child restraint system, be sure to confirm that the seatback is securely locked into place. Otherwise, in an accident,
Second-row seat( captain seat)
