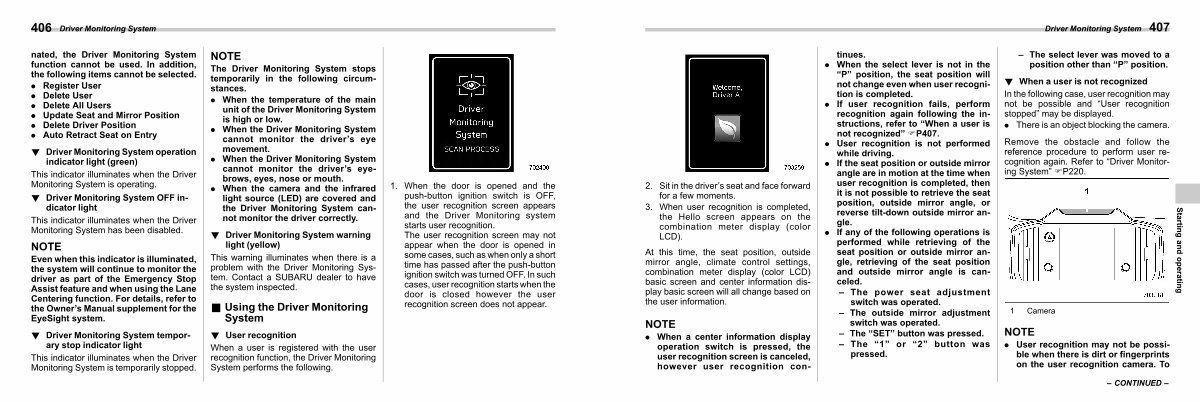

Driver Monitoring System 407 |
|||||
|
2. Sit in the driver’ s seat and face forward for a few moments.
3. When user recognition is completed, the Hello screen appears on the combination meter display( color LCD).
At this time, the seat position, outside mirror angle, climate control settings, combination meter display( color LCD) basic screen and center information display basic screen will all change based on the user information.
NOTE
. When a center information display operation switch is pressed, the user recognition screen is canceled, however user recognition continues
|
.
. When the select lever is not in the“ P” position, the seat position will not change even when user recognition is completed.
. If user recognition fails, perform recognition again following the instructions, refer to“ When a user is not recognized” FP407.
. User recognition is not performed while driving.
. If the seat position or outside mirror angle are in motion at the time when user recognition is completed, then it is not possible to retrieve the seat position, outside mirror angle, or reverse tilt-down outside mirror angle.
. If any of the following operations is performed while retrieving of the seat position or outside mirror angle, retrieving of the seat position and outside mirror angle is canceled. – The power seat adjustment switch was operated. – The outside mirror adjustment switch was operated. – The“ SET” button was pressed. – The“ 1” or“ 2” button was pressed.
|
– The select lever was moved to a position other than“ P” position.
! When a user is not recognized
S07BP0402
In the following case, user recognition may not be possible and“ User recognition stopped” may be displayed.
. There is an object blocking the camera.
Remove the obstacle and follow the reference procedure to perform user recognition again. Refer to“ Driver Monitoring System” FP220.
1 Camera
NOTE
. User recognition may not be possible when there is dirt or fingerprints on the user recognition camera. To
|
Starting and operating |
||
– CONTINUED – |
