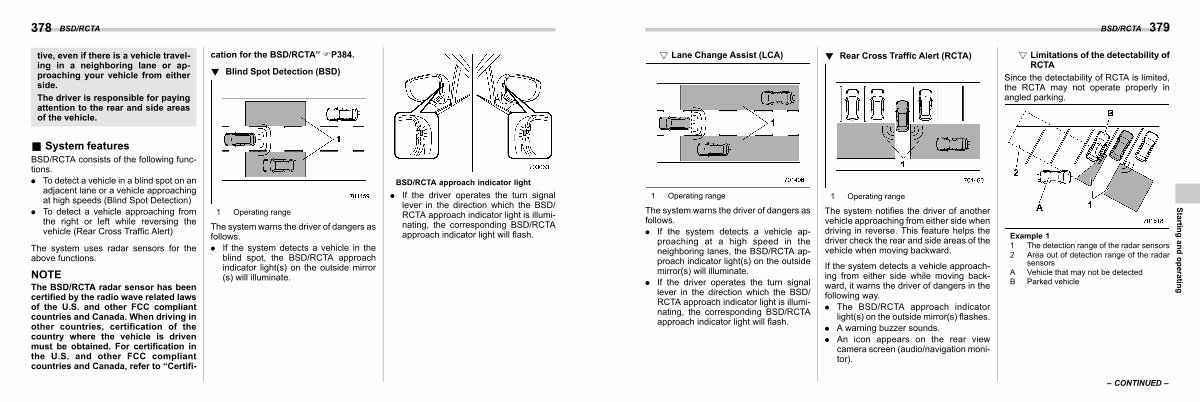

BSD / RCTA 379 |
||||||
|
! Lane Change Assist( LCA)
S07BM010101
|
! Rear Cross Traffic Alert( RCTA)
S07BM0103
|
! Limitations of the detectability of RCTA
S07BM010301
Since the detectability of RCTA is limited, the RCTA may not operate properly in angled parking.
|
||||
|
1 Operating range
The system warns the driver of dangers as follows.
. If the system detects a vehicle approaching at a high speed in the neighboring lanes, the BSD / RCTA approach indicator light( s) on the outside mirror( s) will illuminate.
. If the driver operates the turn signal lever in the direction which the BSD / RCTA approach indicator light is illuminating, the corresponding BSD / RCTA approach indicator light will flash.
|
1 Operating range
The system notifies the driver of another vehicle approaching from either side when driving in reverse. This feature helps the driver check the rear and side areas of the vehicle when moving backward.
If the system detects a vehicle approaching from either side while moving backward, it warns the driver of dangers in the following way.
. The BSD / RCTA approach indicator light( s) on the outside mirror( s) flashes.
. A warning buzzer sounds.
. An icon appears on the rear view camera screen( audio / navigation monitor).
|
Example 1 1 The detection range of the radar sensors 2 Area out of detection range of the radar sensors
A Vehicle that may not be detected B Parked vehicle
|
Starting and operating |
|||
– CONTINUED – |
