NOTE
. When the ignition switch is turned to the“ OFF” position, Auto dimming will not activate.
. When the display mode is selected, auto dimming will not activate.
|
! Camera calibration error
S03AP110602
|
|||||||
|
! When the display mode malfunctions
S03AP1106
! Vehicle communication error
S03AP110601

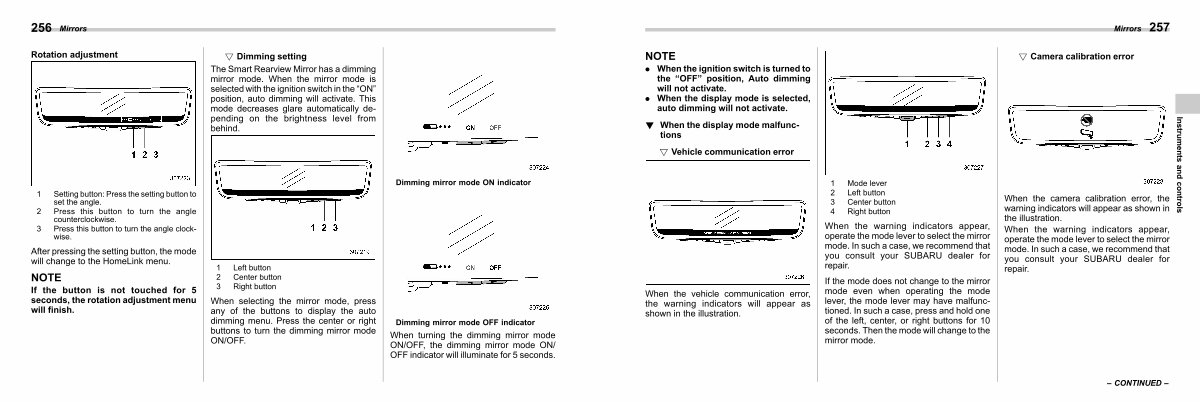

When the vehicle communication error, the warning indicators will appear as shown in the illustration.
|
1 Mode lever 2 Left button 3 Center button 4 Right button
When the warning indicators appear, operate the mode lever to select the mirror mode. In such a case, we recommend that you consult your SUBARU dealer for repair.
If the mode does not change to the mirror mode even when operating the mode lever, the mode lever may have malfunctioned. In such a case, press and hold one of the left, center, or right buttons for 10 seconds. Then the mode will change to the mirror mode.
|
When the camera calibration error, the warning indicators will appear as shown in the illustration.
When the warning indicators appear, operate the mode lever to select the mirror mode. In such a case, we recommend that you consult your SUBARU dealer for repair.
|
Instruments and controls |
|||||
– CONTINUED – |
