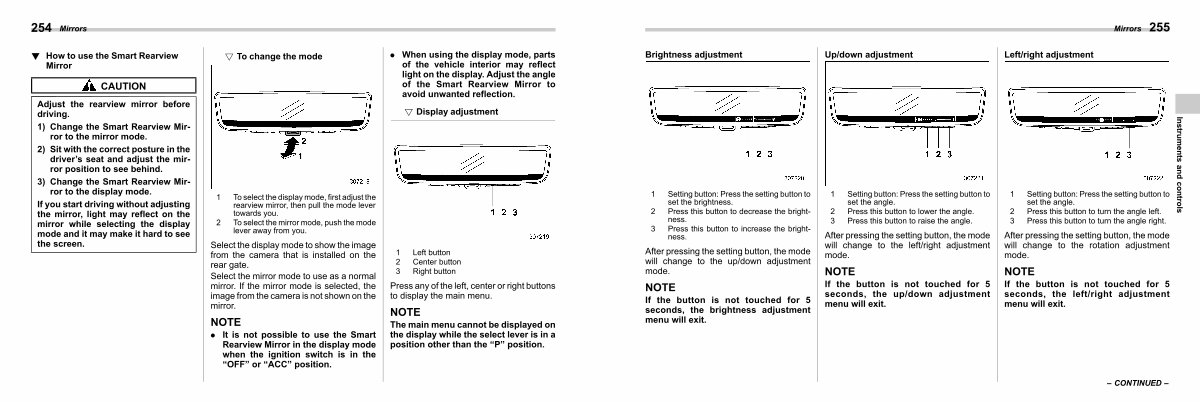

Brightness adjustment |
Up / down adjustment |
Left / right adjustment |
||||||
|
1 Setting button: Press the setting button to set the brightness.
2 Press this button to decrease the brightness.
3 Press this button to increase the brightness.
After pressing the setting button, the mode will change to the up / down adjustment mode.
NOTE
If the button is not touched for 5 seconds, the brightness adjustment menu will exit.
|
1 Setting button: Press the setting button to set the angle.
2 Press this button to lower the angle. 3 Press this button to raise the angle.
After pressing the setting button, the mode will change to the left / right adjustment mode.
NOTE
If the button is not touched for 5 seconds, the up / down adjustment menu will exit.
|
1 Setting button: Press the setting button to set the angle.
2 Press this button to turn the angle left. 3 Press this button to turn the angle right.
After pressing the setting button, the mode will change to the rotation adjustment mode.
NOTE
If the button is not touched for 5 seconds, the left / right adjustment menu will exit.
|
Instruments and controls |
|||||
– CONTINUED – |
