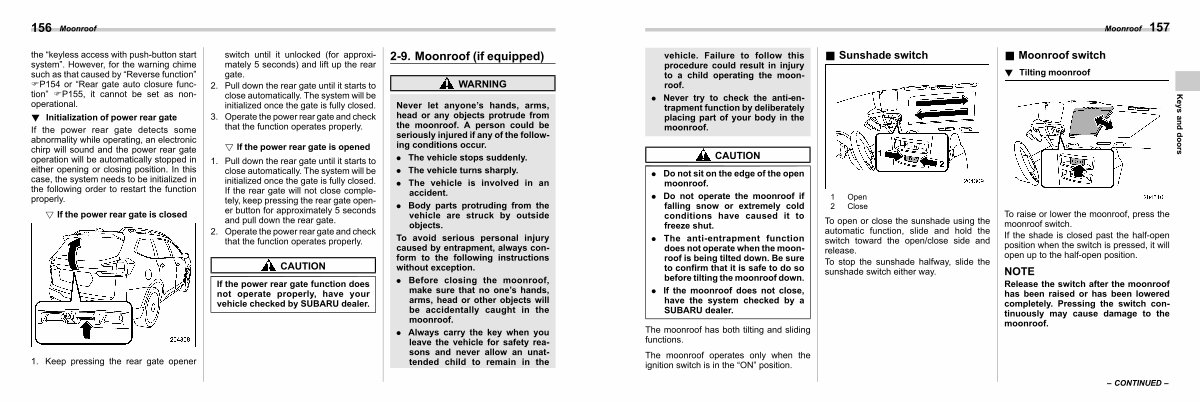

Moonroof 157 |
|
vehicle. Failure to follow this procedure could result in injury to a child operating the moonroof.
. Never try to check the anti-entrapment function by deliberately placing part of your body in the moonroof.
CAUTION
|
& Sunshade switch |
S02AK09 |
& Moonroof switch
! Tilting moonroof
|
S02AK02
S02AK0201
|
Keys and doors |
|
. Do not sit on the edge of the open moonroof.
. Do not operate the moonroof if falling snow or extremely cold conditions have caused it to freeze shut.
. The anti-entrapment function does not operate when the moonroof is being tilted down. Be sure to confirm that it is safe to do so before tilting the moonroof down.
. If the moonroof does not close, have the system checked by a SUBARU dealer.
|
The moonroof has both tilting and sliding functions. |
1 Open 2 Close
To open or close the sunshade using the automatic function, slide and hold the switch toward the open / close side and release.
To stop the sunshade halfway, slide the sunshade switch either way.
|
To raise or lower the moonroof, press the moonroof switch.
If the shade is closed past the half-open position when the switch is pressed, it will open up to the half-open position.
NOTE
Release the switch after the moonroof has been raised or has been lowered completely. Pressing the switch continuously may cause damage to the moonroof.
|
|||||||
The moonroof operates only when the ignition switch is in the“ ON” position. |
||||||||||
– CONTINUED – |
||||||||||
