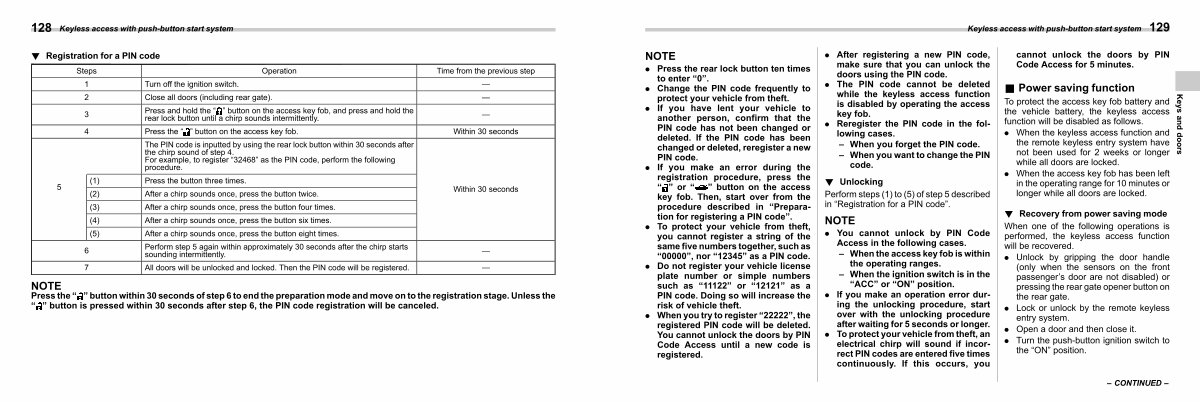

! Registration for a PIN code | ||||
S02AP2102 | ||||
Steps |
Operation |
Time from the previous step |
||
1 |
Turn off the ignition switch. |
— |
||
2 |
Close all doors( including rear gate). |
— |
||
3 |
Press and hold the“
” button on the access key fob, and press and hold the rear lock button until a chirp sounds intermittently.
|
— |
||
4 |
Press the“ |
” button on the access key fob. |
Within 30 seconds |
|
The PIN code is inputted by using the rear lock button within 30 seconds after the chirp sound of step 4. For example, to register“ 32468” as the PIN code, perform the following procedure. |
||||
5 |
( 1)
( 2)
|
Press the button three times.
After a chirp sounds once, press the button twice.
|
Within 30 seconds |
|
( 3) |
After a chirp sounds once, press the button four times. |
|||
( 4) |
After a chirp sounds once, press the button six times. |
|||
( 5) |
After a chirp sounds once, press the button eight times. |
|||
6 |
Perform step 5 again within approximately 30 seconds after the chirp starts sounding intermittently. |
— |
||
7 |
All doors will be unlocked and locked. Then the PIN code will be registered. |
— |
||
