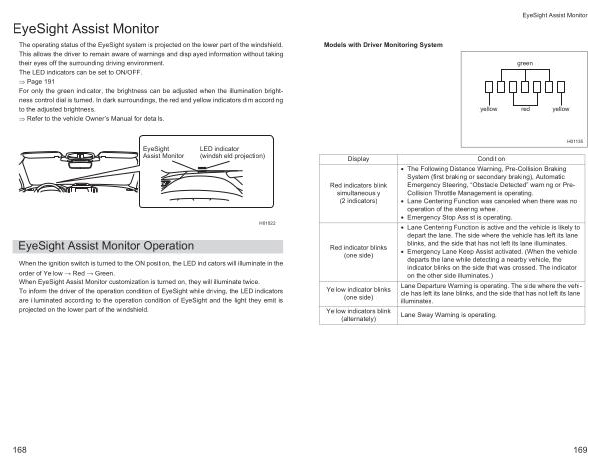

EyeSight Assist Monitor
Models with Driver Monitoring System green
yellow red yellow
H01135
Display
Red indicators blink simultaneously ( 2 indicators )
Red indicator blinks ( one side )
Yellow indicator blinks ( one side )
Yellow indicators blink ( alternately )
Condition
• The Following Distance Warning , Pre-Collision Braking System ( first braking or secondary braking ), Automatic Emergency Steering , “ Obstacle Detected ” warning or Pre- Collision Throttle Management is operating .
• Lane Centering Function was canceled when there was no operation of the steering wheel .
• Emergency Stop Assist is operating .
• Lane Centering Function is active and the vehicle is likely to depart the lane . The side where the vehicle has left its lane blinks , and the side that has not left its lane illuminates .
• Emergency Lane Keep Assist activated . ( When the vehicle departs the lane while detecting a nearby vehicle , the indicator blinks on the side that was crossed . The indicator on the other side illuminates .)
Lane Departure Warning is operating . The side where the vehicle has left its lane blinks , and the side that has not left its lane illuminates .
Lane Sway Warning is operating .
169
