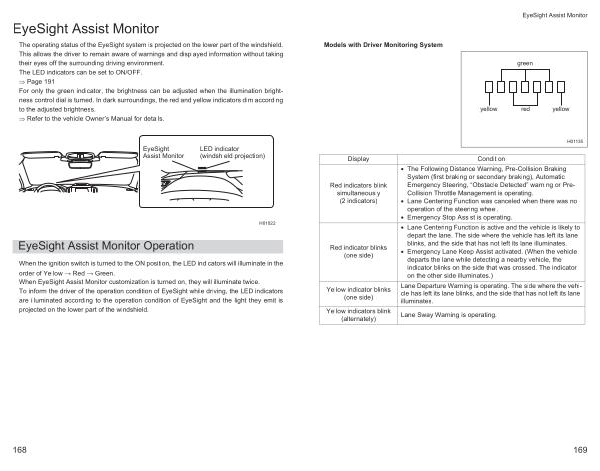

EyeSight Assist Monitor
EyeSight Assist Monitor
The operating status of the EyeSight system is projected on the lower part of the windshield . This allows the driver to remain aware of warnings and displayed information without taking their eyes off the surrounding driving environment . The LED indicators can be set to ON / OFF .
� Page 191 For only the green indicator , the brightness can be adjusted when the illumination brightness control dial is turned . In dark surroundings , the red and yellow indicators dim according to the adjusted brightness .
� Refer to the vehicle Owner ’ s Manual for details .
EyeSight Assist Monitor
LED indicator ( windshield projection )
H01022
EyeSight Assist Monitor Operation
When the ignition switch is turned to the ON position , the LED indicators will illuminate in the order of Yellow � Red � Green . When EyeSight Assist Monitor customization is turned on , they will illuminate twice . To inform the driver of the operation condition of EyeSight while driving , the LED indicators are illuminated according to the operation condition of EyeSight and the light they emit is projected on the lower part of the windshield .
168
