514
Replacing bulbs

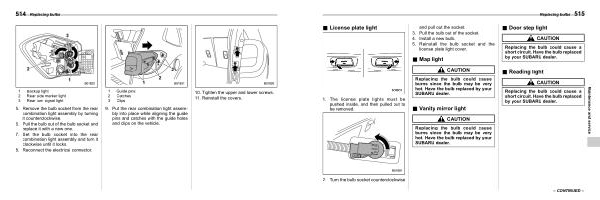

1 Backup light 2 Rear side marker light 3 Rear turn signal light
5 . Remove the bulb socket from the rear combination light assembly by turning it counterclockwise .
6 . Pull the bulb out of the bulb socket and replace it with a new one .
7 . Set the bulb socket into the rear combination light assembly and turn it clockwise until it locks .
8 . Reconnect the electrical connector .
1 Guide pins 2 Catches 3 Clips
9 . Put the rear combination light assembly into place while aligning the guide pins and catches with the guide holes and clips on the vehicle .
10 . Tighten the upper and lower screws . 11 . Reinstall the covers .
