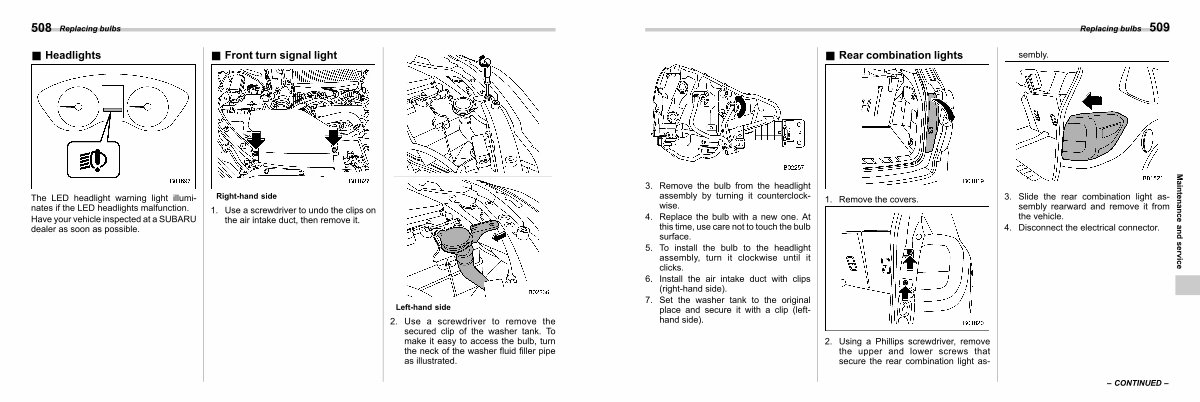

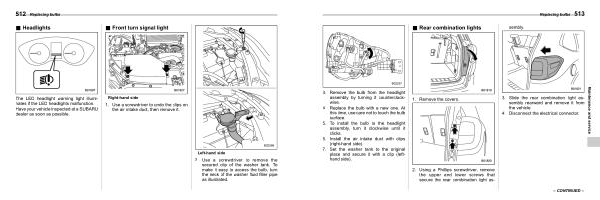

3 . Remove the bulb from the headlight assembly by turning it counterclockwise .
4 . Replace the bulb with a new one . At this time , use care not to touch the bulb surface .
5 . To install the bulb to the headlight assembly , turn it clockwise until it clicks .
6 . Install the air intake duct with clips ( right-hand side ).
7 . Set the washer tank to the original place and secure it with a clip ( lefthand side ).
|
1 . Remove the covers . |
3 . Slide the rear combination light assembly rearward and remove it from the vehicle .
4 . Disconnect the electrical connector .
|
Maintenance and service |
|||||
2 . Using a Phillips screwdriver , remove the upper and lower screws that secure the rear combination light as- |
||||||||
– CONTINUED – |
