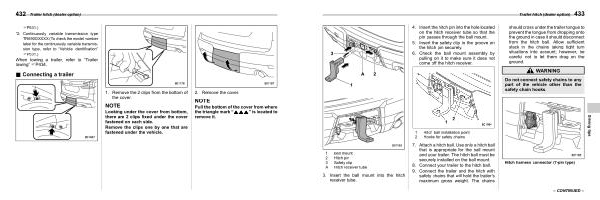

Trailer hitch ( dealer option ) 433
4 . Insert the hitch pin into the hole located on the hitch receiver tube so that the pin passes through the ball mount .
5 . Insert the safety clip to the groove on the hitch pin securely .
6 . Check the ball mount assembly by pulling on it to make sure it does not come off the hitch receiver .
should cross under the trailer tongue to prevent the tongue from dropping onto the ground in case it should disconnect from the hitch ball . Allow sufficient slack in the chains taking tight turn situations into account ; however , be careful not to let them drag on the ground .
WARNING
Do not connect safety chains to any part of the vehicle other than the safety chain hooks .
1 Ball mount 2 Hitch pin 3 Safety clip A Hitch receiver tube
3 . Insert the ball mount into the hitch receiver tube .
1 Hitch ball installation point 2 Hooks for safety chains
7 . Attach a hitch ball . Use only a hitch ball that is appropriate for the ball mount and your trailer . The hitch ball must be securely installed on the ball mount .
8 . Connect your trailer to the hitch ball .
9 . Connect the trailer and the hitch with safety chains that will hold the trailer ’ s maximum gross weight . The chains
Hitch harness connector ( 7-pin type )
– CONTINUED –
Driving tips
