432
Trailer hitch ( dealer option )
FP531
.)
* 2 : Continuously variable transmission type TR690GXXXX ( To check the model number label for the continuously variable transmission type , refer to “ Vehicle identification ” FP531 .)
When towing a trailer , refer to “ Trailer towing ” FP434 .

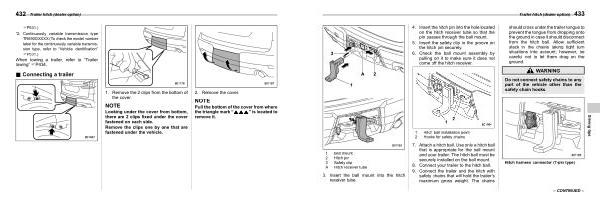

& Connecting a trailer
S08AK01
1 . Remove the 2 clips from the bottom of the cover .
NOTE
Looking under the cover from bottom , there are 2 clips fixed under the cover fastened on each side .
Remove the clips one by one that are fastened under the vehicle .
2 . Remove the cover .
NOTE
Pull the bottom of the cover from where the triangle mark “ ” is located to remove it .
