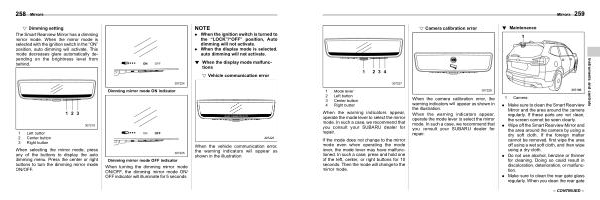

258
Mirrors
! Dimming setting
S03AP110306
The Smart Rearview Mirror has a dimming mirror mode . When the mirror mode is selected with the ignition switch in the “ ON ” position , auto dimming will activate . This mode decreases glare automatically depending on the brightness level from behind .
NOTE
. When the ignition switch is turned to the “ LOCK ”/“ OFF ” position , Auto dimming will not activate .
. When the display mode is selected , auto dimming will not activate .
! When the display mode malfunctions
S03AP1106
! Vehicle communication error
S03AP110601
Dimming mirror mode ON indicator
1 Left button 2 Center button 3 Right button
When selecting the mirror mode , press any of the buttons to display the auto dimming menu . Press the center or right buttons to turn the dimming mirror mode ON / OFF .
Dimming mirror mode OFF indicator
When turning the dimming mirror mode ON / OFF , the dimming mirror mode ON / OFF indicator will illuminate for 5 seconds .
When the vehicle communication error , the warning indicators will appear as shown in the illustration .
