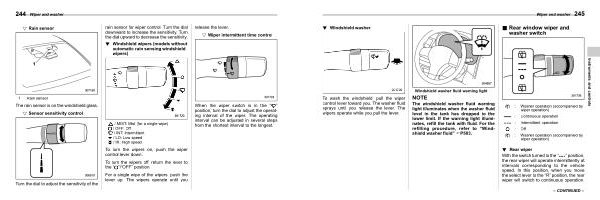

! Windshield washer |
S03AM0104 |
& Rear window wiper and washer switch |
S03AM02 |
To wash the windshield , pull the wiper control lever toward you . The washer fluid sprays until you release the lever . The wipers operate while you pull the lever . |
Windshield washer fluid warning light
NOTE
The windshield washer fluid warning light illuminates when the washer fluid level in the tank has dropped to the lower limit . If the warning light illuminates , refill the tank with fluid . For the refilling procedure , refer to “ Windshield washer fluid ” FP503 .
|
: Washer operation ( accompanied by wiper operation )
: Continuous operation : Intermittent operation : Off : Washer operation ( accompanied by wiper operation )
|
Instruments and controls |
|||||
|
! Rear wiper
S03AM0201
With the switch turned to the “ ” position , the rear wiper will operate intermittently at intervals corresponding to the vehicle speed . In this position , when you move the select lever to the “ R ” position , the rear wiper will switch to continuous operation .
|
||||||||
– CONTINUED – |
