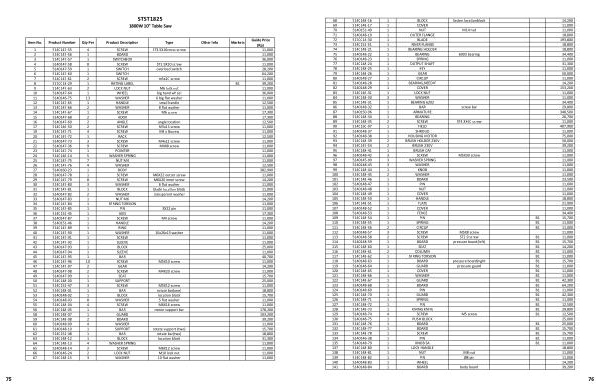

Stanley Spare Part E-Book | Page 79

68 5140148-16 1 BLOCK fasten locationblock 14,200
69 5140148-17 1 COVER 11,000
70 5140151-49 1 NUT M14 nut 11,000
71 5140148-19 1 OUTER FLANGE 18,800
72 5170014-30 1 BLADE 193,800
73 5140151-51 1 INNER FLANGE 18,800
74 5140148-21 1 BEARING HOLDER 18,800
75 5140148-22 1 BEARING 6003 bearing 34,400
76 5140148-23 1 SPRING 11,000
77 5140148-24 1 OUTPUT SHAFT 31,300
78 5140148-25 1 KEY 11,000
79 5140148-26 1 GEAR 50,000
80 5140148-27 1 CIRCLIP 11,000
81 5140148-28 1 BEARING,NEEDLE 14,200
82 5140148-29 1 COVER 153,200
83 5140146-31 1 LOCK NUT 11,000
84 5140148-30 3 WASHER 11,000
85 5140148-31 1 BEARING 6202 34,400
86 5140148-32 1 BAR screw bar 29,800
87 5140150-96 1 ARMATURE 348,500
88 5140148-34 1 BEARING 26,700
89 5140148-35 2 SCREW ST4.8X60 screw 11,000
90 5140150-97 1 FIELD 407,900
91 5140148-37 1 SHROUD 11,000
92 5140148-38 1 HOUSING MOTOR 75,000
93 5140148-39 2 BRUSH HOLDER 230V 50,000
94 5140147-54 2 BRUSH 230V 39,200
95 5140148-41 1 BRUSH CAP 11,000
96 5140148-42 3 SCREW M5X30 screw 11,000
97 5140145-99 3 WASHER SPRING 11,000
98 5140148-43 3 WASHER 11,000
99 5140148-44 1 KNOB 11,000
100 5140148-45 2 WASHER 11,000
101 5140148-46 1 BOARD 23,500
102 5140148-47 1 PIN 11,000
103 5140148-48 1 NUT 11,000
104 5140148-49 1 COVER 11,000
105 5140148-50 1 HANDLE 18,800
106 5140148-51 1 PLATE 21,900
107 5140148-52 1 COVER 11,000
108 5140148-53 1 FENCE 34,400
109 5140148-54 1 PIN B1 15,700
110 5140148-55 1 SPRING B1 11,000
111 5140148-56 2 CIRCLIP B1 11,000
112 5140148-57 3 SCREW M5X8 screw 11,000
113 5140148-58 2 SCREW ST2.9 screw B1 11,000
114 5140148-59 1 BOARD pressure board(left) B1 15,700
115 5140148-60 1 SEAT B1 14,200
116 5140148-61 2 COLUMN B1 11,000
117 5140148-62 1 SPRING TORSION B1 11,000
118 5140148-63 1 BOARD pressure board(right B1 15,700
119 5140148-64 1 GUARD pressure guard B1 11,000
120 5140148-65 1 COVER B1 11,000
121 5140148-66 1 WASHER B1 11,000
122 5140148-67 1 GUARD B1 42,300
123 5140148-68 1 BOARD B1 64,200
124 5140148-69 1 PIN B1 11,000
125 5140148-70 1 GUARD B1 42,300
126 5140148-71 1 SPRING B1 11,000
127 5140148-72 1 PIN B1 12,500
128 5140148-73 1 RIVING KNIFE B1 29,800
129 5140148-74 4 SCREW M5 screw B1 12,500
130 5140148-75 1 PUSH BLOCK 25,000
131 5140148-76 1 BOARD B1 25,000
132 5140148-77 1 BOARD B1 15,700
133 5140148-78 1 SCREW B1 15,700
134 5140146-38 1 PIN B1 11,000
135 5140148-79 1 KNOB SA B1 11,000
137 5140148-80 1 LOCK HANDLE 18,800
138 5140148-81 1 NUT M8 nut 11,000
139 5140148-82 1 PIN Ø8 pin 11,000
140 5140148-83 1 WHEEL 14,200
141 5140148-84 1 BOARD body board 39,200
