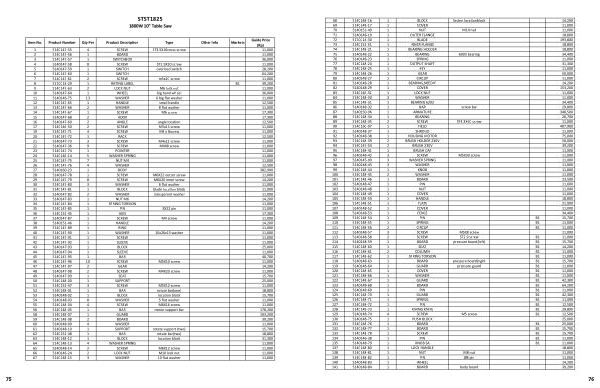

Stanley Spare Part E-Book | Page 78

STST1825
1800W 10" Table Saw
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 5140147-55 4 SCREW ST3.5X16cross screw 11,000
2 5140147-56 1 BOARD 11,000
3 5140147-57 1 SWITCHBOX 36,000
4 5140147-58 8 SCREW ST3.9X10 screw 11,000
5 5140147-59 1 SWITCH overload switch 28,200
6 5140147-60 1 SWITCH 64,200
7 5140147-61 2 SCREW m5x20 screw 11,000
8 5170014-29 1 RATING LABEL B1 39,200
9 5140147-63 2 LOCK NUT M6 lock nut 11,000
10 5140147-64 1 WHEEL big hand wheel 36,000
11 5140146-75 13 WASHER 6 big flat washer 11,000
12 5140147-65 1 HANDLE small handle 12,500
13 5140147-66 2 WASHER 8 flat washer 11,000
14 5140147-67 1 SCREW M6 screw 17,300
15 5140147-68 2 HOOK 17,300
16 5140147-69 2 ANGLE angle location 12,500
17 5140146-50 2 SCREW M5x16 screw 11,000
19 5140147-71 4 SCREW M4 x 8screw 11,000
20 5140147-72 1 RACK 12,500
21 5140147-73 3 SCREW M4x12 screw 11,000
22 5140147-36 9 SCREW M4X8 screw 11,000
23 5140147-74 1 POINTER 11,000
24 5140146-14 5 WASHER SPRING 11,000
25 5140147-75 7 NUT M4 11,000
26 5140147-76 4 WASHER 12,500
27 5140160-23 1 BODY 382,900
28 5140147-78 1 SCREW M6X22 outter screw 11,000
29 5140147-79 8 SCREW M6X20 inner screw 14,200
30 5140147-80 3 WASHER 6 flat washer 11,000
31 5140147-81 1 BLOCK blade location block 11,000
32 5140147-82 2 WASHER transparent washer 11,000
33 5140147-83 1 NUT M6 14,200
34 5140147-84 1 SPRING TORSION 11,000
35 5140147-85 1 PIN 3X22 pin 11,000
36 5140151-45 1 AXIS 17,300
37 5140147-87 1 SCREW M4 screw 11,000
38 5140151-46 1 HANDLE 14,200
39 5140147-89 1 RING 11,000
40 5140147-90 1 WASHER 10x26x15 washer 11,000
41 5140147-91 1 SCREW 11,000
42 5140147-92 1 SLEEVE 11,000
43 5140147-93 1 BLOCK 25,000
44 5140147-94 1 SLEEVE 11,000
45 5140147-95 1 BAR 40,700
46 5140147-96 10 SCREW M5X10 screw 11,000
47 5140147-97 2 GEAR 14,200
48 5140147-98 2 SCREW M4X20 screw 11,000
49 5140147-99 1 SEAT 15,700
50 5140148-00 1 SUPPORT 25,000
51 5140151-47 3 SCREW M5X12 screw 11,000
52 5140148-01 1 BAR rotate bar(one) 18,800
53 5140148-02 1 BLOCK location block 15,700
54 5140148-03 8 WASHER 5 flat washer 11,000
55 5140148-04 4 SCREW M6X16 screw 11,000
56 5140148-05 1 BAR motor support bar 178,200
58 5140148-07 1 GUARD 103,200
59 5140148-08 2 BOARD 39,200
60 5140148-09 4 WASHER 11,000
61 5140148-10 1 SUPPORT rotate support (two) 15,700
62 5140151-48 1 BAR rotate bar(two) 18,800
63 5140148-12 1 BLOCK location block 31,300
64 5140148-13 4 WASHER SPRING 11,000
65 5140148-14 2 SCREW M6X12 screw 11,000
66 5140146-24 2 LOCK NUT M10 lock nut 11,000
67 5140148-15 3 WASHER 10 flat washer 11,000
75
