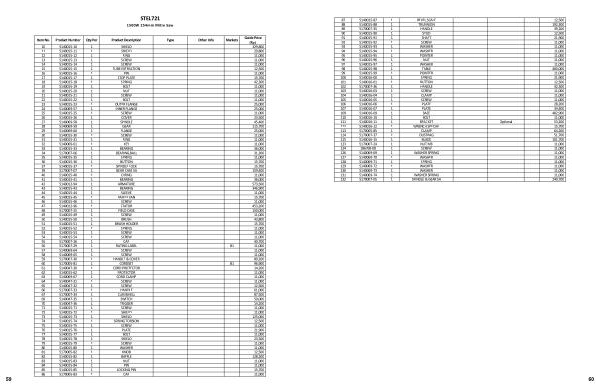

Stanley Spare Part E-Book | Page 63

87 5140015-87 1 BEVEL SCALE 12,500
88 5140015-88 1 TRUNNION 192,300
89 5170007-35 1 HANDLE 39,200
90 5140015-90 1 STUD 12,500
91 5140015-91 1 SHAFT 21,900
92 5140015-92 1 SCREW 11,000
93 5140015-93 1 WASHER 11,000
94 5140015-94 1 WASHER 11,000
95 5140015-95 1 POINTER 11,000
96 5140015-96 1 NUT 11,000
97 5140015-97 1 WASHER 11,000
98 5140015-98 1 TABLE 400,000
99 5140015-99 1 POINTER 11,000
100 5140016-00 1 SPRING 21,900
101 5140016-01 1 BUTTON 12,500
102 5170007-36 1 HANDLE 42,300
103 5140016-03 1 SCREW 11,000
104 5140016-04 1 CLAMP 11,000
105 5140016-05 1 SCREW 11,000
106 5140016-06 1 PLATE 28,200
107 5140016-07 1 PLATE 34,400
109 5140016-09 1 BASE 482,900
110 5140016-10 1 BOLT 11,000
111 5140016-11 1 BRACKET Optional 53,200
112 5140016-12 1 WRENCH SPECIAL 15,700
113 5170005-85 1 CLAMP 64,200
114 5170007-37 1 DUSTBAG 51,700
115 5140016-15 1 BLADE 101,700
123 5170007-24 1 NUT M8 11,000
124 186769-00 1 SCREW 11,000
126 5140069-69 1 WASHER SPRING 11,000
127 5140069-70 1 WASHER 11,000
128 5140069-71 1 SPRING 11,000
129 5140069-72 1 WASHER 11,000
130 5140069-73 1 WASHER 11,000
131 5140069-74 1 WASHER SPRING 11,000
132 5170007-05 1 SPINDLE & GEAR SA 240,700
60
