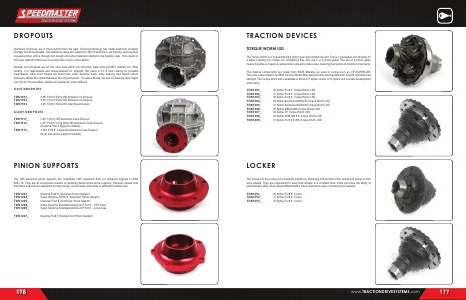

DROPOUTS
Aluminum Dropouts, are in improvement from the past. Current technology has made aluminum products stronger and more durable. Our aluminum cases are made from 356 T6 aluminum, our bearing caps are from one-piece billet, with a through bolt design and extra material is added to the bearing caps. This results in 50 % less deflection that can occur with other units on the market.
Nodular Iron Dropouts; are an iron race case which are cast from super-strong D4515 nodular iron. After casting, it is heat-treated and stress-relieved for strength. We spent a lot of time looking for possible weaknesses. After much testing we found that, under extreme loads, other bearing caps flexed, which adversely affects the contact between the ring and pinion. To reduce flexing, we had our bearing caps forged out of 4140 Chrome-Moly, added ore material for extra stiffness.
CAST DROPOUTS
TDS1101 _ TDS1102 _ TDS1103 _
3.06” Ford 9” Extra HD Nodular Iron Dropout 3.25” Ford 9” Extra HD Nodular Iron Dropout 3.25” Ford 9” Extra HD Cast Steel Dropout
ALLOY DROPOUTS
TDS1111 _ TDS1112 _
TDS1113 _
3.25” Ford 9” HD Aluminum Case Dropout 3.25” Ford 9” Long Nose HD Aluminum Case Dropout( Daytona Pinion Support included). 3.250 Ford 9” Longnose Aluminum Case Dropout( Over size pinion support included).
PINION SUPPORTS
The TDS aluminum pinion supports are completely CNC machined from our designed forgings or billet 6061-T6. They are an economical solution to replacing failure-prone stock supports. However, please note that these supports are designed for drag racing, circuit racing and made to withstand extreme use.
TDS1201 _ TDS1202 _ TDS1203 _ TDS1204 _ TDS1205 _
TDS1221 _
Daytona Ford 9” Aluminum Pinion Support Super Daytona FORD 9” Aluminum Pinion Support Oversize Ford 9” Aluminum Pinion Support Super Daytona Extended Aluminum P / S KIT- STD Case Super Daytona Extended Aluminum P / S KIT- Long Case
Daytona Ford 9” Nodular Iron Pinion Support
