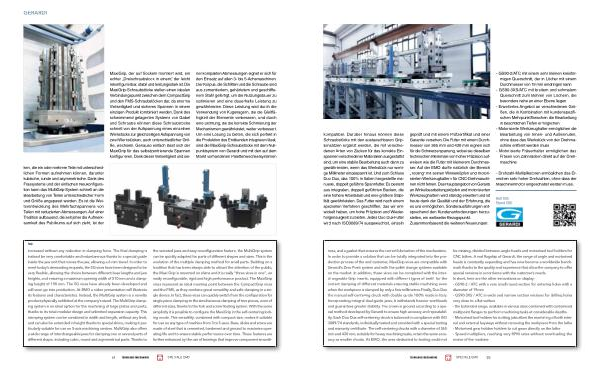

GERARDI
MaxiGrip , der auf Sockeln montiert wird , ein echter „ Dreischraubstock in einem “, der leicht rekonfigurierbar , stabil und leistungsstark ist . Die MaxiGrip-Schraubstöcke stellen einen idealen Verbindungspunkt zwischen dem CompactGrip und den FMS-Schraubstöcken dar , da enorme Vielseitigkeit und sicheres Spannen in einem einzigen Produkt kombiniert werden . Dank des schwimmend gelagerten Systems von Gabel und Schraube können diese Schraubstöcke schnell von der Aufspannung eines einzelnen Werkstücks zur gleichzeitigen Aufspannung von zwei Werkstücken , auch unterschiedlicher Größe , wechseln . Genauso einfach lässt sich der MaxiGrip für das selbstzentrierende Spannen konfigurieren . Dank dieser Vielseitigkeit und seiner kompakten Abmessungen eignet er sich für den Einsatz auf allen 3- bis 5-Achsmaschinen . Der Korpus , die Schlitten und die Schraube sind aus zementiertem , gehärtetem und geschliffenem Stahl gefertigt , um die Nutzungsdauer zu optimieren und eine dauerhafte Leistung zu gewährleisten . Diese Leistung wird durch die Verwendung von Kugellagern , die die Gleitfähigkeit der Elemente verbessern , und durch eine Dichtung , die die korrekte Schmierung der Mechanismen gewährleistet , weiter verbessert . Um eine Lösung zu bieten , die sich perfekt in die Produktion des Endkunden integrieren lässt , sind die MaxiGrip-Schraubstöcke mit dem Nullpunktsystem von Gerardi und mit den auf dem Markt vorhandenen Palettenwechselsystemen
ken , die ein oder mehrere Teile mit unterschiedlichen Formen aufnehmen können , darunter kubische , runde und asymmetrische . Dank des Frässystems und der einfachen Neukonfiguration kann das MultiGrip-System schnell an die Bearbeitung von Teilen unterschiedlicher Form und Größe angepasst werden . Es ist die Weiterentwicklung des Mehrfachspannens von Teilen mit reduzierten Abmessungen . Auf einer Tradition aufbauend , die seit jeher die Aufmerksamkeit des Publikums auf sich zieht , ist der
➥ increased without any reduction in clamping force . The final clamping is instead be very comfortable and instantaneous thanks to a special guide inside the jaw unit that moves the jaw , allowing a 6 mm travel . In order to meet today ’ s demanding requests , the 5G vices have been designed to be very flexible , allowing the choice between different base lengths and jaw heights , and ensuring a maximum opening width of 510 mm and a clamping height of 190 mm . The 5G vices have already been developed and will soon go into production . At EMO a video presentation will illustrate its features and characteristics . Instead , the MultiGrip system is a novelty product physically exhibited at the company ’ s stand . The MultiGrip clamping system is an ideal option for the machining of large plates and parts , thanks to its total modular design and unlimited expansion capacity . This clamping system can be combined in width and length , without any limit , and can also be extended in height thanks to special shims , making it particularly suitable for use on 5-axis machining centres . MultiGrip also offers a wide range of interchangeable jaws for clamping one or several parts of different shape , including cubic , round and asymmetrical parts . Thanks to the serrated jaws and easy reconfiguration feature , the MultiGrip system can be quickly adapted for parts of different shapes and sizes . This is the evolution of the multiple clamping method for small parts . Building on a tradition that has been always able to attract the attention of the public , the Maxi Grip is mounted on shims and it is really “ three vices in one ”, an easily reconfigurable , rigid and high performance product . The MaxiGrip vices represent an ideal meeting point between the CompactGrip vices and the FMS , as they combine great versatility and safe clamping in a single device . In fact , these vices can quickly switch from the configuration for single piece clamping to the simultaneous clamping of two pieces , even of different sizes , thanks to the fork and screw floating system . With the same simplicity it is possible to configure the MaxiGrip in the self-centering locking mode . This versatility , combined with compact size , makes it suitable for use on any type of machine from 3 to 5 axes . Base , slides and screw are made of steel that is cemented , hardened and ground to maximise operating life and to ensure stable performance over time . These features are further enhanced by the use of bearings that improve component smooth-
54 SPECIALE EMO
