das Spannen auf 5-Achsmaschinen und eine Kombination aus Funktionalität und Vorzügen bieten . Dank ihrer Vielseitigkeit und Stabilität garantieren diese Schraubstöcke ein genaues und wiederholtes Spannen auf allen Flächen des Werkstücks . Mit Hilfe von Verankerungsbügeln können die beiden Backenstützen fixiert werden , um die Struktur zu versteifen und die Biegung zu minimieren , die normalerweise beim Spannen in großer Höhe entsteht , sobald die benötigte Öffnung festgelegt wurde . Dank des nahe der Spannfläche wirkenden Schraubensystems wird außerdem die Höhe der Werkstückaufnahme erhöht , ohne dass dabei die Spannkraft verringert wird . Das endgültige Einspannen hingegen ist dank einer speziellen Führung , die in die Einheit eingefügt wird und die Backen mit einem Hub von 6 mm bewegt , reibungslos und schnell . Um den heutigen anspruchsvollen Anforderungen gerecht zu werden , wurden die 5G-Schraubstöcke so konzipiert , dass sie sehr flexibel sind und verschiedene Grundlängen und Backenhöhen bis zu einer maximalen Öffnung von 510 mm und einer Spannhöhe von 190 mm eingestellt werden können . Die 5G-Schraubstöcke sind bereits entworfen worden und werden bald in Produktion gehen . Auf der EMO ist eine Videopräsentation geplant , die ihre Eigenschaften und Besonderheiten veranschaulicht . Hingegen ist das MultiGrip-System die Neu-
heit , die Sie auf dem Stand des Unternehmens hautnah erleben können . Das MultiGrip-Spannsystem ist dank seiner vollständigen Modularität und unbegrenzten Erweiterungsmöglichkeiten eine ideale Option für die Bearbeitung großer Platten und Teile . Dieses Spannsystem ist in der
Breite und Länge unbegrenzt anpassbar und kann dank den speziellen Hebevorrichtungen auch in der Höhe angepasst werden , wodurch es sich besonders für den Einsatz auf 5-Achsmaschinen eignet . MultiGrip bietet auch eine breite Palette an austauschbaren Spannbac-

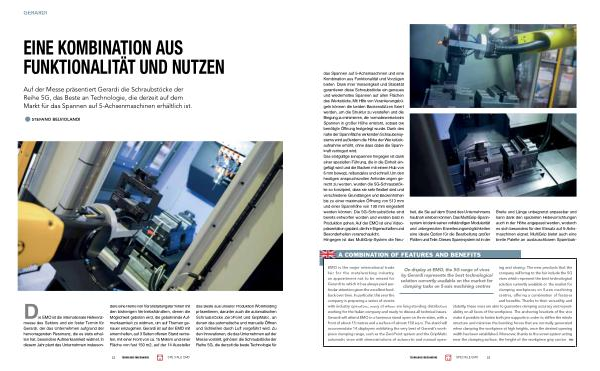

A COMBINATION OF FEATURES AND BENEFITS
On display at EMO , the 5G range of vices by Gerardi represents the best technological solution currently available on the market for clamping tasks on 5-axis machining centres
EMO is the major international trade fair for the metalworking industry , an appointment not to be missed for Gerardi to which it has always paid particular attention given the excellent feedback over time . In particular , this year the company is preparing a series of events with industry operators , many of whom are long-standing distributors working for the Italian company and ready to discuss all technical issues . Gerardi will attend EMO in a luminous stand open on three sides , with a front of about 15 metres and a surface of almost 150 sq . m . The stand will accommodate 14 displayers exhibiting the very best of Gerardi ’ s workpiece clamping range , such as the ZeroPoint system and the GripMatic automatic vices with demonstrations of automatic and manual opening and closing . The new products that the company will bring to the fair include the 5G vices which represent the best technological solution currently available on the market for clamping workpieces on 5-axis machining centres , offering a combination of features and benefits . Thanks to their versatility and stability , these vices are able to guarantee clamping accuracy and repeatability on all faces of the workpiece . The anchoring brackets of the vice make it possible to fasten both jaw supports in order to stiffen the whole structure and minimise the bending forces that are normally generated when clamping the workpiece at high heights , once the desired opening width has been established . Moreover , thanks to the screw system acting near the clamping surface , the height of the workpiece grip can be
➥
