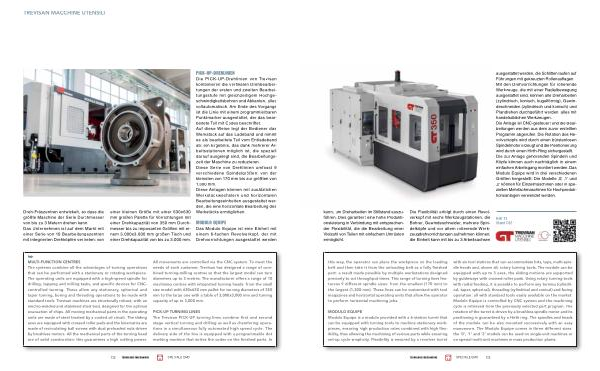

ausgestattet werden , die Schlitten laufen auf Führungen mit gekreuzten Rollenauflagen . Mit den Drehvorrichtungen für rotierende Werkzeuge , die mit einer Radialbewegung ausgestattet sind , können alle Dreharbeiten ( zylindrisch , konisch , kugelförmig ), Gewindeschneiden ( zylindrisch und konisch ) und Plandrehen durchgeführt werden : alles mit handelsüblichen Werkzeugen . Die Anlage ist CNC-gesteuert und die Bearbeitungen werden aus dem zuvor erstellten Programm abgerufen . Die Rotation des Revolverkopfs wird durch einen bürstenlosen Spindelmotor erzeugt und die Positionierung wird durch einen Hirth-Ring sichergestellt . Die zur Anlage gehörenden Spindeln und Köpfe können auch nachträglich in einem einfachen Arbeitsgang montiert werden . Das Modulo Equipe wird in drei verschiedenen Größen hergestellt : Die Modelle ‚ 0 ‘, ‚ 1 ‘ und ‚ 2 ‘ können für Einzelmaschinen oder in speziellen Mehrfachmaschinen für Hochproduktionsanlagen verwendet werden .
kann , um Dreharbeiten im Stillstand auszuführen . Dies garantiert eine hohe Produktionsleistung in Verbindung mit entsprechender Flexibilität , die die Bearbeitung einer Vielzahl von Teilen mit einfachem Umrüsten ermöglicht .
Die Flexibilität erfolgt durch einen Revolverkopf mit sechs Werkzeugstationen , die Bohrer , Gewindeschneider , mehrere Spindelköpfe und vor allem rotierende Werkzeugdrehvorrichtungen aufnehmen können ; die Einheit kann mit bis zu 3 Arbeitsachsen
Hall 13 Stand C83 this way , the operator can place the workpiece on the loading belt and then take it from the unloading belt as a fully finished part : a result made possible by multiple workstations designed precisely to cut throughput times . This range of turning lines featurees 9 different spindle sizes : from the smallest ( 170 mm ) to the largest ( 1,300 mm ). These lines can be customised with tool magazines and horizontal operating units that allow the operator to perform horizontal machining jobs .
MODULO EQUIPE Modulo Equipe is a module provided with a 6-station turret that can be equipped with turning tools to machine stationary workpieces , ensuring high production rates combined with high flexibility , thus allowing the machining of various parts while ensuring set-up cycle simplicity . Flexibility is ensured by a revolver turret with six tool stations that can accommodate bits , taps , multi-spindle heads and , above all , rotary turning tools ; The module can be equipped with up to 3 axes , the sliding motions are supported by guideways with crossed roller pads . Using rotary turning tools with radial feeding , it is possible to perform any turning ( cylindrical , taper , spherical ), threading ( cylindrical and conical ) and facing operation : all with standard tools easily available on the market . Modulo Equipe is controlled by CNC system and the machining cycle is retrieved from the previously selected part program . The rotation of the turret is driven by a brushless spindle motor and its positioning is guaranteed by a Hirth ring . The spindles and heads of the module can be also mounted successively with an easy manoeuvre . The Modulo Equipe comes in three different sizes : the ‘ 0 ’, ‘ 1 ’ and ‘ 2 ’ models can be used on single-unit machines or on special multi-unit machines in mass production plants .
