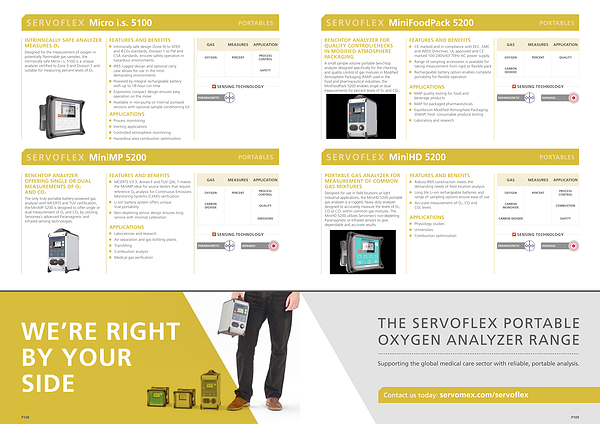

SERVOFLEX Micro i . s . 5100
PORTABLES
INTRINSICALLY SAFE ANALYZER
MEASURES O2
Designed for the measurement of oxygen in potentially flammable gas samples , the intrinsically safe Micro i . s . 5100 is a unique analyzer certified to Zone 0 and Division 1 and suitable for measuring percent levels of O2 .
FEATURES AND BENEFITS
Intrinsically safe design ( Zone 0 ) to ATEX and IECEx standards , Division 1 to FM and CSA standards , ensures safety operation in hazardous environments
IP65 rugged design and optional carry case allows for use in the most demanding environments
Powered by integral rechargeable battery with up to 18-hour run time
Ergonomic compact design ensures easy operation on the move
Available in non-pump or internal pumped versions with optional sample conditioning kit
APPLICATIONS
Process monitoring Inerting applications Controlled atmosphere monitoring Hazardous area combustion optimization
GAS MEASURES APPLICATION
OXYGEN
PERCENT
SENSING TECHNOLOGY
PROCESS CONTROL
SAFETY
SERVOFLEX MiniMP 5200
PORTABLES
BENCHTOP ANALYZER OFFERING SINGLE OR DUAL MEASUREMENTS OF O2 AND CO2
The only truly portable battery-powered gas analyzer with MCERTS and TUV certification , the MiniMP 5200 is designed to offer single or dual measurement of O2 and CO2 by utilizing Servomex ’ s advanced Paramagnetic and Infrared sensing technologies .
FEATURES AND BENEFITS
MCERTS V3.3 , Annex F and TUV QAL 1 makes the MiniMP ideal for source testers that require reference O 2 analysis for Continuous Emissions Monitoring Systems ( CEMS ) verification
Li-ion battery system offers unique true portability
Non-depleting sensor design ensures long service with minimal calibration
APPLICATIONS
Laboratories and research Air separation and gas bottling plants Transfilling Combustion analysis Medical gas verification
GAS MEASURES APPLICATION
OXYGEN
CARBON DIOXIDE
PERCENT
SENSING TECHNOLOGY
PROCESS CONTROL
QUALITY
EMISSIONS
WE ’ RE RIGHT BY YOUR SIDE
P108
