INTERIOR ELEVATIONS
J
I
I
11
I
DOD JL
DOD
DOD
II
j;
'

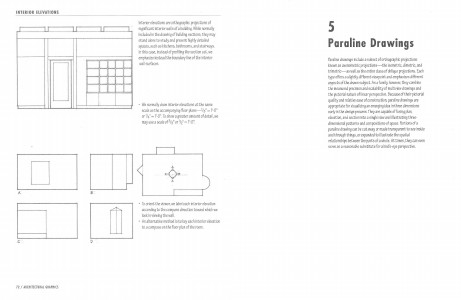

Interior elevations are orthographic projections of
significant interior walls of a building. While normally
included in the drawing of building sections, they may
stand alone to study and present highly detailed
spaces. such as kitchens. bathrooms. and stairways.
In this case. instead of profiling the section cut. we
emphasize instead the boundary line of the interior
wall surfaces.
II
• We normally draw interior elevations at the same
/8"
scale as theaccompanying floor plans-1 = 1'-0"
or 1J4 = 1'-0". To show a greater amount of detail, we
may use a scale of318" or W' = 1'-0".
11
D
A
• To orient the viewer. we Ia bel each interior elevation
according tc t hecompass direction toward whichwe
look in viewing the wall.
• An alternative method isto key each interior elevation
tc acompass on the floor plan of theroom.
c -
72 I ARCHITECTURAL GRAPHICS
