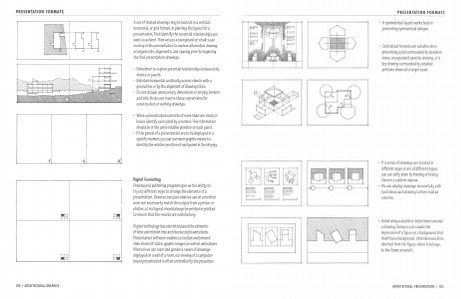

PRESENTATION FORMATS
• Asymmetrical layout works best in
presenting symmetrical designs.
• Centralized formats are suitablewhen
presenting a plan surrounded by elevation
views, an expanded para line drawing, or a
key drawing surrounded by detailed
portions drawn at alarger scale.
• If aseries of drawings are treated in
different ways or are of different types,
you can unify them by framing or boxing
t hemin a uniform manner.
• We candisplay drawings horizontally with
text below eachdrawingto form related
columns.
• Avoid using adouble or triple frame around
adrawing. Doing so can create the
impression of a figure on a background that
itself has a background. Attention would be
diverted from the figure, where it belongs,
to theframe around it.
ARCHITECTURAL PRESENTATIONS I 183
