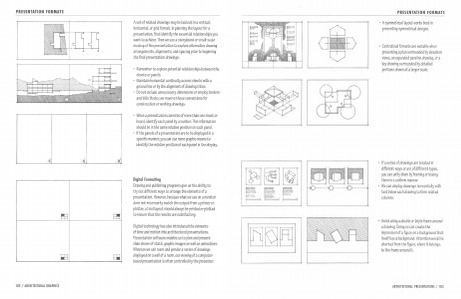

PRESENTATION FORMATS
----~---·-··n:
_ U _ _=U
A set of related drawings may be laid out in a vertical,
horizontal, or grid format. In planning the layout for a
presentation, first identify the essential relationships you
want to ach ieve. Th we use a storyboard or small-scale
en
mockupof the presentationto explore alternative drawing
arrangements, alignments, and spacing prior to beginning
the final presentation drawings.
• Remem ber to explore potential relationships b
etween the
sheets or panels.
• Maintain h
orizontal continuity across sheet s with a
ground lineor by the alignment of drawing titles.
• Do not includeunnecessary dimensions or employ borders
and title blocks; we reserve t hese conventions for
construction or working drawings.
• When a presentation consists of more tha none sheet or
board, ident ify each panel by a number. This information
shou ld be inthe same relative position on each p
anel.
• If the pa nels of apresentation are to be displayed in a
specific manner, you can use more graphic m
eans t o
identify the relative posit ion of each panel in t hedisplay.
I
.--1'1d
_1
Digital Formatting
Drawing and publishing programs give us the ability t o
try out different ways t o arrange the elements of a
presentation. However, because what we see on a monit or
does not necessarily match theoutput fromaprinter or
d
plotter, a trial layout should always be printe or plotted
to ens W&RF
