SACOR BUSINESS GROUP-2019 COMPANY CATALOGUE SACOR BUSINESS GROUP 2019 COMPANY CATALOGUE | Page 88

19
SpecificationS*
inStrument Warranty:
Two-year warranty, excluding consumables (i.e. - filters)
caSe material:
Polycarbonate with protective rubber overmold
Sample DraW capability:
Up to 15.2 meters (50 feet)
DimenSionS:
143 mm x 81 mm x 68 mm (5.6" x 3.2" x 2.7") - Lithium-ion battery version
143 mm x 81 mm x 85 mm (5.6" x 3.2" x 3.3") - Extended-range
lithium-ion battery version
143 mm x 81 mm x 73 mm (5.6" x 3.2" x 2.9") - Alkaline battery version
Weight:
270 g (9.5 oz) - Lithium-ion battery version
316 g (11.2 oz) - Extended-range lithium-ion battery version
284 g (10.0 oz) - Alkaline battery version
operating temperature range:
-20 C-50 C (-4 F-122 F)
operating humiDity range:
15%-95% non-condensing (continuous)
poWer Source/run time:
Rechargeable lithium-ion battery pack - 18 hours 20 C
Rechargeable extended-range lithium-ion battery
Pack - 36 hours 20 C
Replaceable AAA alkaline battery pack - 10 hours 20 C
pump fault alarmS:
Ultra-bright LEDs
Loud audible alarm (90 dB at 30 cm)
ip rating:
Third-party certified IP67
certificationS:
ATEX:
Ex ia I Ma and Ex ia IIC T4 Ga;
Equipment Group and Category: I M1 and II 1G
CSA:
Class I, Division 1, Group A B C D, T4 Exia;
Ex ia IIC T4
IECEx:
Ex ia IIC T4 Ga
UL:
Class I, Division 1, Groups A B C D, T4;
Class I, Zone 0, AEx ia IIC T4 Ga;
Class II, Group F G (Carbonaceous and Grain Dust)
*All specifications are based on a typical instrument and typical performance of the instrument.
As such, they are subject to vary.
18109162- 1 1 1 1
EXAMPLE: 18109162-1111 - Ventis Slide-on
Pump, Lithium-ion Battery Pack, Orange, UL/
CSA, EN-FR-SP-DE-CN
space entries. Available in
black or safety orange and
powered by its own battery
pack, the slide-on pump is
compatible with the Ventis
MX4 and MX4 iQuad multi-
gas monitors.

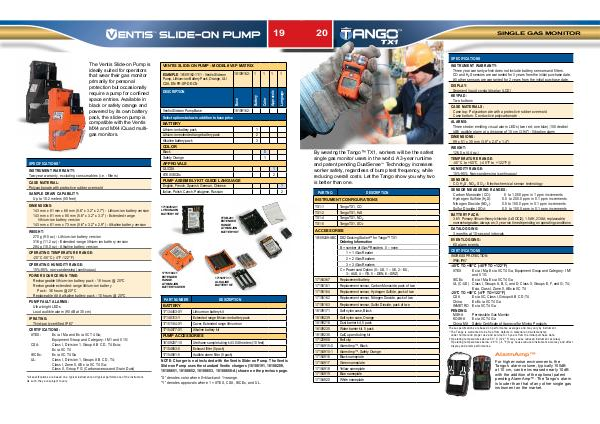

VeNtIs slIde-ON PumP - mOdel# VsP matrIX
The Ventis Slide-on Pump is
ideally suited for operators
that wear their gas monitor
primarily for personal
protection but occasionally
DESCRIPTION
Ventis Slide-on Pump Base
18109162-
Select options below in addition to base price
Battery
Lithium-ion battery pack
Lithium-ion extended range battery pack
Alkaline battery pack
cOlOr
Black
Safety Orange
aPPrOVals
UL/CSA
ATEX/IECEx
PumP assemBly KIt GuIde laNGuaGe
English, French, Spanish, German, Chinese
Italian, Polish, Czech, Portugese, Russian
1
2
3
0
1
1
2
1
2
17134453-01
lItHIum-ION
Battery KIt
VtsB-201
eXteNded
raNGe
lItHIum-ION
Battery KIt
17151184-11
eXteNded
raNGe
lItHIum-ION
Battery cOVer
17154577-11
alKalINe
Battery KIt
PART NUMBER
DESCRIPTION
Battery
17134453-XY Lithium-ion battery kit
17148313-Y Extended range lithium-ion battery pack
17151184-XY Cover, Extended range lithium-ion
17154577-XY Alkaline battery kit
PumP accessOrIes
18109207-10 Urethane sample tubing kit 3.048 meters (10 feet)
17154853-5 Exhaust filter (5 pack)
17154581-5 Audible alarm filter (5 pack)
NOTE: Charger is not included with the Ventis Slide-on Pump. The Ventis
Slide-on Pump uses the standard Ventis chargers (18108191, 18108209,
18108651, 18108652, 18108653, 18108650-A) shown on the previous page.
“X” denotes color where 0=black and 1=orange.
“Y” denotes approvals where 1 = ATEX, CSA, IECEx, and UL.
