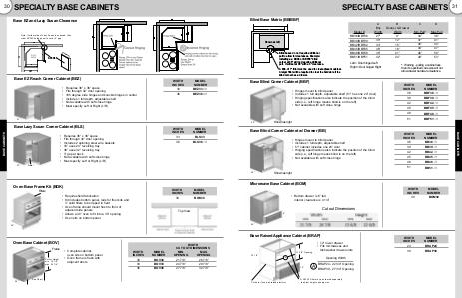

SPECIALTY BASE CABINETS
Blind Base Matrix (BB/BBF)
D
C
Model #
BB36/BBF36
BB39/BBF39
BB42/BBF42
BB45/BBF45
BB48/BBF48
BB51/BBF51
A
Shown as left
B
Blind bases do not require additional
pull to allow for clearances. Example:
Installing a a BB36 or BBF36” blind
corner at 36” will not require additional
pull. It will set at 36” with a 3” clearance.
A Min. of 1" filler must be used to clear adjacent cabinet.
A larger filler will be required to clear the hardware if the
blind corner has a drawer.
A
Box
Width
27”
30”
33”
36”
39”
42”
Left = Door hinged Left
Right = Door hinged Right
Base Blind Corner Cabinet (BBF)
• Hinges mount to blind panel
• Includes 1 full depth, adjustable shelf (51” has one 24” door)
• Hinging specifications also indicate the position of the blind
side (i.e., left hinge means blind is on the left)
• Not available with soft close hinge
24”
C
D
Min Pull*
34”
37”
40”
43”
46”
49”
Max Pull
38”
41”
44”
47”
50”
53”
Warning - pulling a cabinet less
*than
it’s specified code size will not
allow drawer hardware clearance.
MODEL
NUMBER
BBF36L/R
39
BBF39L/R
42
BBF42L/R
45
BBF45L/R
48
BBF48L/R
51
BBF51L/R
WIDTH
INCHES
36
MODEL
NUMBER
BB36L/R
•
•
•
•
Hinges mount to blind panel
Includes 1 full depth, adjustable shelf
51” cabinet includes one 24” door
Hinging specifications also indicate the position of the blind
side (i.e., left hinge means blind is on the left)
• Not available with soft close hinge
39
BB39L/R
42
BB42L/R
45
BB45L/R
48
BB48L/R
51
BB51L/R
Shown as right
Microwave Base Cabinet (BOM)
• Bottom drawer is 6” tall,
interior clearance is 4 1/4”
WIDTH
INCHES
30
MODEL
NUMBER
BOM30
Cut out Dimensions
6”
24”
Base Raised Appliance Cabinet (BRAP)
17 5/8” Opening
34 1/2”
A
Opening Width
12”
Cut here if used as raised platform
• 12” lower drawer
• Fits microwaves and
dishwasher drawer units
A
BRAP24 - 22 3/4” Opening
BRAP30 - 27 3/4” Opening
A: AF330 Filler may be ordered separately
to adjust height opening size
WIDTH
INCHES
24
MODEL
NUMBER
BRAP24
30
BRAP30
BASE CABINETS
WIDTH
INCHES
36
Shown as right
Base Blind Corner Cabinet w/ Drawer (BB)
24”
B
Door(s) & Drawer
Width
9”
12”
15”
18”
21”
24”
