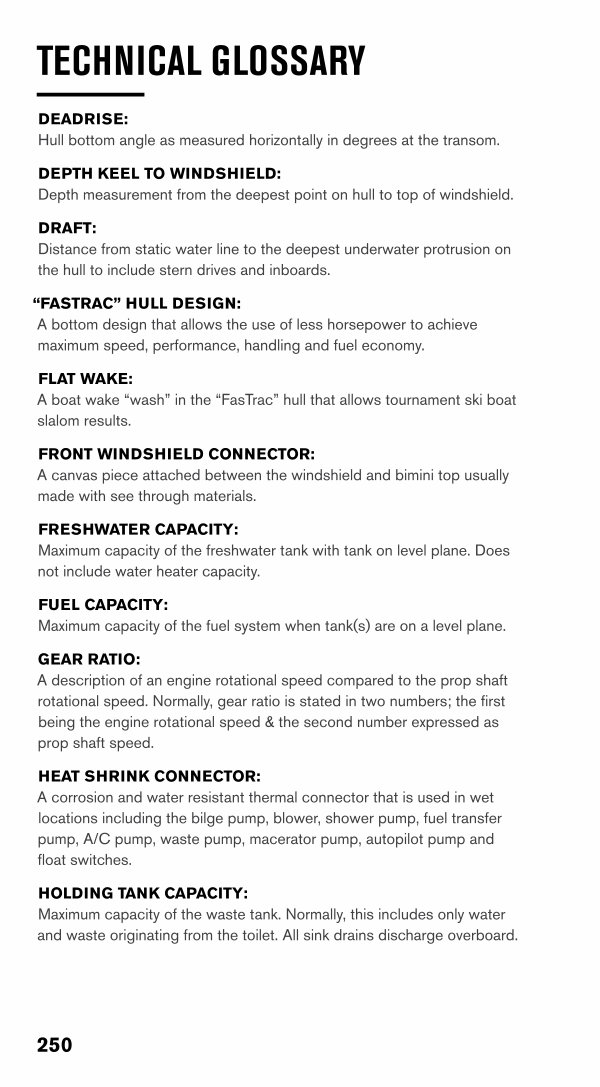

TECHNICAL GLOSSARY
DEADRISE: Hull bottom angle as measured horizontally in degrees at the transom.
DEPTH KEEL TO WINDSHIELD: Depth measurement from the deepest point on hull to top of windshield.
DRAFT: Distance from static water line to the deepest underwater protrusion on the hull to include stern drives and inboards.
“ FASTRAC” HULL DESIGN: A bottom design that allows the use of less horsepower to achieve maximum speed, performance, handling and fuel economy.
FLAT WAKE: A boat wake“ wash” in the“ FasTrac” hull that allows tournament ski boat slalom results.
FRONT WINDSHIELD CONNECTOR: A canvas piece attached between the windshield and bimini top usually made with see through materials.
FRESHWATER CAPACITY: Maximum capacity of the freshwater tank with tank on level plane. Does not include water heater capacity.
FUEL CAPACITY: Maximum capacity of the fuel system when tank( s) are on a level plane.
GEAR RATIO: A description of an engine rotational speed compared to the prop shaft rotational speed. Normally, gear ratio is stated in two numbers; the first being the engine rotational speed & the second number expressed as prop shaft speed.
HEAT SHRINK CONNECTOR: A corrosion and water resistant thermal connector that is used in wet locations including the bilge pump, blower, shower pump, fuel transfer pump, A / C pump, waste pump, macerator pump, autopilot pump and float switches.
HOLDING TANK CAPACITY: Maximum capacity of the waste tank. Normally, this includes only water and waste originating from the toilet. All sink drains discharge overboard.
