Ray White recommend that landlords consider the use of an annual smoke alarm service provider as a best practice step to ensure your obligations are always being met .
These types of providers will consistently check that your smoke alarms are in working order and replace them as part of their service , when required . To find out more , speak with your Ray White property manager .
What are the rules around the installation and location of smoke alarms ?
All smoke alarms must be properly installed by the landlord in accordance with the manufacturer ’ s instructions . Landlords should not give smoke alarms to the tenant to install .

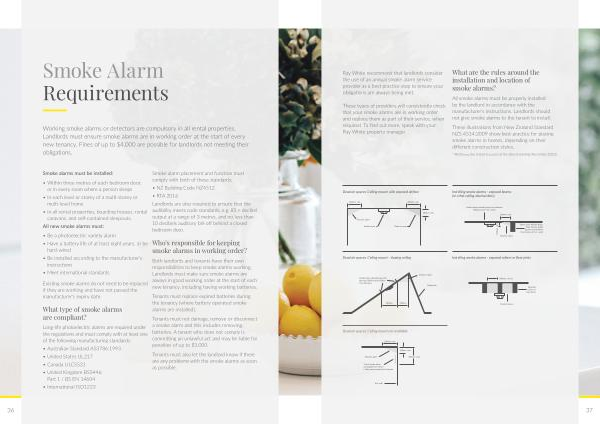

These illustrations from New Zealand Standard NZS 4514:2009 show best practice for placing smoke alarms in homes , depending on their different construction styles .
* All information stated is correct at the time of printing ( November 2020 ).
Dead air spaces : Ceiling mount with exposed airflow
Installing smoke alarms - exposed beams ( or other ceiling obstructions )
200mm min . 200mm min .
100mm min .
Smoke alarm should be located minimum 200mm away from beam
200mm min .
Dead air space
Smoke alarm
Dead air space
100mm min .
Dead air space
Beam up to 460mm deep . Note if beam depth greater than 460mm then treat as if it is a wall .
Dead air spaces : Ceiling mount - sloping ceiling Installing smoke alarms - exposed rafters or floor joists
Dead air space
Smoke alarm should be located between 200mm and 500mm
900mm or less
from the apex
Ceiling line
Exposed
rafters or
floor joists
300mm 200mm
Dead air space
Dead air spaces : Ceiling mount not available
200mm min .
100mm min .
Dead air space 300mm max .
Top of smoke alarm acceptable here where ceiling mount cannot be achieved
Side wall
