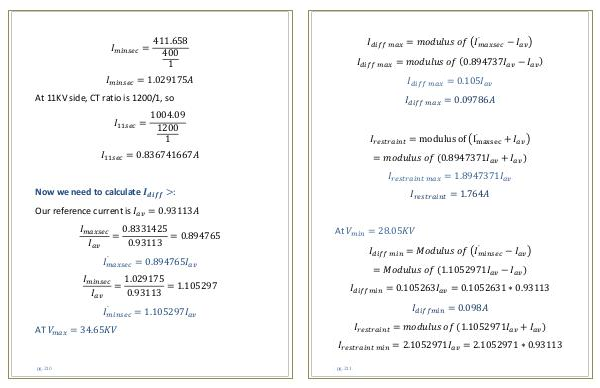

Protection Engineering Basics and Schemes Protection Engineering | Page 211

`

I diff max = modulus of( I maxsec − I av)

I diff max = modulus of( 0.894737I av − I av) I diff max = 0.105I av I diff max = 0.09786A

`

I restraint = modulus of( I maxsec + I av) = modulus of( 0.8947371I av + I av) I restraint max = 1.8947371I av I restraint = 1.764A

At V min = 28.05KV

`

I diff min = Modulus of( I minsec

− I av) = Modulus of( 1.1052971I av − I av) I diffmin = 0.105263I av = 0.1052631 ∗ 0.93113 I diffmin = 0.098A I restraint = modulus of( 1.1052971I av + I av) I restraint min = 2.1052971I av = 2.1052971 ∗ 0.93113

pg. 211
