Protection Engineering Basics and Schemes Protection Engineering | Page 154

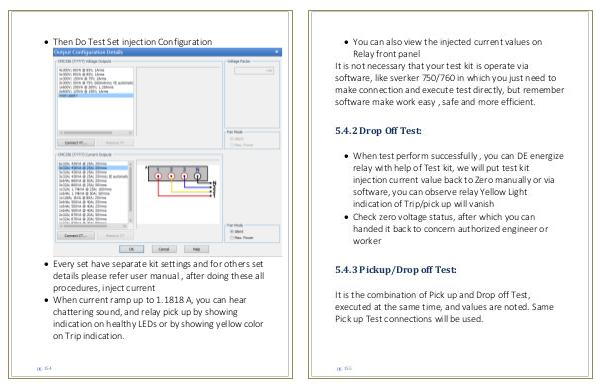

� Then Do Test Set injection Configuration

� Every set have separate kit settings and for others set details please refer user manual, after doing these all procedures, inject current

� When current ramp up to 1.1818 A, you can hear chattering sound, and relay pick up by showing indication on healthy LEDs or by showing yellow color on Trip indication. pg. 154
