Pattern 36 / 5 Pattern 36 / 4
Pattern 36 / 9
Pattern 36 / 7 Pattern 36 / 7 / 4 ( See Note 3 )
Pattern 36 / 14
Pattern 36 / 11
Note 1 : Nestable B-Deck shown . Interlocking BI-Deck with screwable sidelap is also covered by the equations discussed in Section 3.5.1.7 . Note 2 : Bar joist shown . Connection to structural steel members also covered by the equations discussed in Section 3.5.1.7 . Note 3 : 36 / 7 / 4 attachment pattern utilizes 36 / 7 attachment at panel lap and panel end lap , 36 / 4 attachment at panel intermediate supports

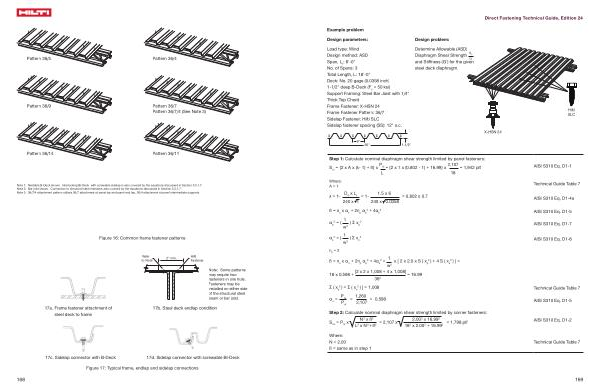

Figure 16 : Common frame fastener patterns
Refer to Note
2 " min .
Hilti Fastener
Note : Some patterns may require two fasteners in one flute . Fasteners may be installed on either side of the structural steel beam or bar joist .
17a . Frame fastener attachment of steel deck to frame
17b . Steel deck endlap condition
17c . Sidelap connector with B-Deck
17d . Sidelap connector with screwable BI-Deck Figure 17 : Typical frame , endlap and sidelap connections
168
