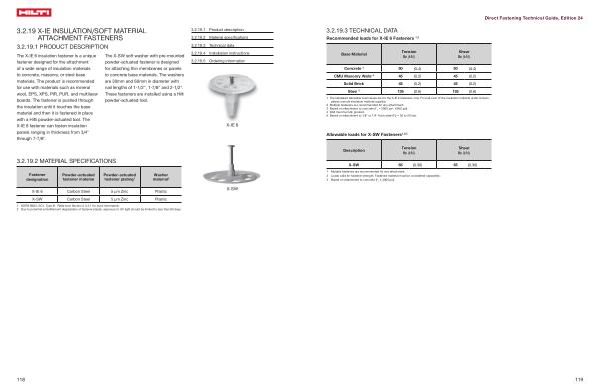

3.2.19 X-IE INSULATION / SOFT MATERIAL ATTACHMENT FASTENERS
3.2.19.1 PRODUCT DESCRIPTION
The X-IE 6 insulation fastener is a unique fastener designed for the attachment of a wide range of insulation materials to concrete , masonry , or steel base materials . The product is recommended for use with materials such as mineral wool , EPS , XPS , PIR , PUR , and multilayer boards . The fastener is pushed through the insulation until it touches the base material and then it is fastened in place with a Hilti powder-actuated tool . The X-IE 6 fastener can fasten insulation panels ranging in thickness from 3 / 4 " through 7-7 / 8 ".
The X-SW soft washer with pre-mounted powder-actuated fastener is designed for attaching thin membranes or panels to concrete base materials . The washers are 30mm and 60mm in diameter with nail lengths of 1-1 / 2 ", 1-7 / 8 " and 2-1 / 2 ". These fasteners are installed using a Hilti powder-actuated tool .
3.2.19.1 Product description 3.2.19.2 Material specifications 3.2.19.3 Technical data 3.2.19.4 Installation instructions 3.2.19.5 Ordering information
X-IE 6
3.2.19.2 MATERIAL SPECIFICATIONS
Fastener designation |
Powder-actuated fastener material |
Powder-actuated fastener plating 1 |
Washer material 2 |
X-IE 6 Carbon Steel 5 μm Zinc Plastic
X-SW
X-SW Carbon Steel 5 μm Zinc Plastic
1 ASTM B633 , SC1 , Type III . Reference Section 2.3.3.1 for more information . 2 Due to potential embrittlement degradation of fastener plastic , exposure to UV light should be limited to less than 90 days .
