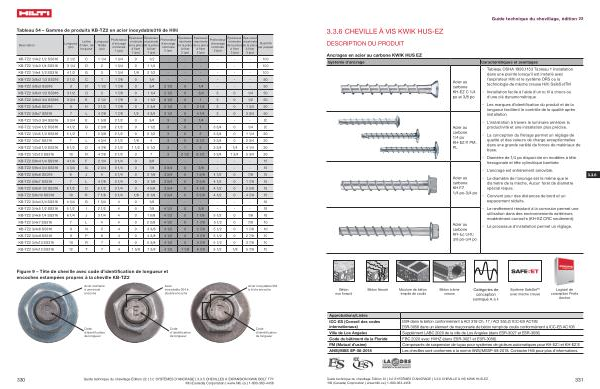

Tableau 54 – Gamme de produits KB-TZ2 en acier inoxydable316 de Hilti
Description
Longueur ( po )
Lettre d ’ iden . de longueur
Longueur filetée ( po )
Profondeur d ’ ancrage nominale 1 ( po )
Épaisseur minimale de la pièce à fixer 1 ( po )
Épaisseur maximale de la pièce à fixer 1 ( po )
Profondeur d ’ ancrage nominale 2 ( po )
Épaisseur minimale de la pièce à fixer 2 ( po )
Épaisseur maximale de la pièce à fixer 2 ( po )
Profondeur d ’ ancrage nominale 3 ( po )
Épaisseur minimale de la pièce à fixer 3 ( po )
Épaisseur maximale de la pièce à fixer 3 ( po )
KB-TZ2 1 / 4x2 1 / 2 SS316 2 1 / 2 C 1 1 / 4 1 3 / 4 0 1 / 2 - - - - - - 100 KB-TZ2 1 / 4x3 1 / 4 SS316 3 1 / 4 D 2 1 3 / 4 0 1 1 / 4 - - - - - - 100 KB-TZ2 1 / 4x4 1 / 2 SS316 4 1 / 2 G 3 1 3 / 4 1 / 8 2 1 / 2 - - - - - - 100 KB-TZ2 3 / 8x2 1 / 2 SS316 2 1 / 2 C 1 1 7 / 8 0 1 / 4 - - - - - - 50 KB-TZ2 3 / 8x3 SS316 3 D 1 1 / 2 1 7 / 8 0 3 / 4 2 1 / 2 0 1 / 4 - - - 50 KB-TZ2 3 / 8x3 1 / 2 SS316 3 1 / 2 Ω 2 1 7 / 8 0 1 1 / 4 2 1 / 2 0 3 / 4 3 0 1 / 4 50 KB-TZ2 3 / 8x3 3 / 4 SS316 3 3 / 4 E 2 1 / 4 1 7 / 8 0 1 1 / 2 2 1 / 2 0 1 3 0 1 / 2 50 KB-TZ2 3 / 8x5 SS316 5 H 3 1 / 2 1 7 / 8 0 2 3 / 4 2 1 / 2 0 2 1 / 4 3 0 1 3 / 4 50 KB-TZ2 3 / 8x7 SS316 7 L 4 7 / 8 1 7 / 8 1 / 2 4 3 / 4 2 1 / 2 0 4 1 / 4 3 0 3 3 / 4 50 KB-TZ2 1 / 2x3 3 / 4 SS316 3 3 / 4 E 1 5 / 8 2 1 / 2 0 3 / 4 3 0 1 / 4 - - - 20 KB-TZ2 1 / 2x4 1 / 2 SS316 4 1 / 2 G 2 3 / 8 2 1 / 2 0 1 1 / 2 3 0 1 3 3 / 4 0 1 / 4 20 KB-TZ2 1 / 2x5 1 / 2 SS316 5 1 / 2 I 3 3 / 8 2 1 / 2 0 2 1 / 2 3 0 2 3 3 / 4 0 1 1 / 4 20 KB-TZ2 1 / 2x7 SS316 7 L 4 3 / 4 2 1 / 2 1 / 8 4 3 0 3 1 / 2 3 3 / 4 0 2 3 / 4 20 KB-TZ2 1 / 2x8 1 / 2 SS316 8 1 / 2 O 4 7 / 8 2 1 / 2 1 1 / 2 5 1 / 2 3 1 5 3 3 / 4 1 / 4 4 1 / 4 20 KB-TZ2 1 / 2x10 SS316 10 R 4 7 / 8 2 1 / 2 3 7 3 2 1 / 2 6 1 / 2 3 3 / 4 1 3 / 4 5 3 / 4 20 KB-TZ2 5 / 8x4 1 / 4 SS316 4 1 / 4 F 2 1 / 4 3 1 / 4 0 3 / 8 - - - - - - 15 KB-TZ2 5 / 8x4 3 / 4 SS316 4 3 / 4 G 2 3 / 4 3 1 / 4 0 7 / 8 3 3 / 4 0 3 / 8 - - - 15 KB-TZ2 5 / 8x6 SS316 6 J 4 3 1 / 4 0 2 1 / 8 3 3 / 4 0 1 5 / 8 4 1 / 2 0 7 / 8 15 KB-TZ2 5 / 8x7 SS316 7 L 4 7 / 8 3 1 / 4 0 3 1 / 8 3 3 / 4 0 2 5 / 8 4 1 / 2 0 1 7 / 8 15 KB-TZ2 5 / 8x8 1 / 2 SS316 8 1 / 2 O 6 1 / 2 3 1 / 4 0 4 5 / 8 3 3 / 4 0 4 1 / 8 4 1 / 2 0 3 3 / 8 15 KB-TZ2 5 / 8x10 SS316 10 R 7 1 / 8 3 1 / 4 1 / 8 6 1 / 8 3 3 / 4 0 5 5 / 8 4 1 / 2 0 4 7 / 8 15 KB-TZ2 3 / 4x4 3 / 4 SS316 4 3 / 4 G 1 3 / 4 4 0 1 / 8 - - - - - - 10 KB-TZ2 3 / 4x5 1 / 2 SS316 5 1 / 2 I 2 1 / 2 4 0 7 / 8 4 1 / 2 0 3 / 8 - - - 10 KB-TZ2 3 / 4x6 1 / 4 SS316 6 1 / 4 J 3 1 / 4 4 0 1 5 / 8 4 1 / 2 0 1 1 / 8 5 1 / 2 0 1 / 8 10 KB-TZ2 3 / 4x7 SS316 7 L 4 4 0 2 3 / 8 4 1 / 2 0 1 7 / 8 5 1 / 2 0 7 / 8 10 KB-TZ2 3 / 4x8 SS316 8 N 5 4 0 3 3 / 8 4 1 / 2 0 2 7 / 8 5 1 / 2 0 1 7 / 8 10 KB-TZ2 3 / 4x9 SS316 9 P 6 4 0 4 3 / 8 4 1 / 2 0 3 7 / 8 5 1 / 2 0 2 7 / 8 10 KB-TZ2 3 / 4x10 SS316 10 R 7 4 0 5 3 / 8 4 1 / 2 0 4 7 / 8 5 1 / 2 0 3 7 / 8 10 KB-TZ2 3 / 4x12 SS316 12 T 7 4 1 5 / 8 7 3 / 8 4 1 / 2 1 1 / 8 6 7 / 8 5 1 / 2 1 / 8 5 7 / 8 10
Quantité par paquet
Figure 9 – Tête de cheville avec code d ’ identification de longueur et encoches estampées propres à la cheville KB-TZ2
Acier ordinaire à une seule encoche
Acier inoxydable 304 à double encoche
Acier inoxydable 316 à triple encoche
Code d ’ identification de longueur
Code d ’ identification de longueur
Code d ’ identification de longueur
330 Guide technique du chevillage Édition 22 | 3.0 SYSTÈMES D ’ ANCRAGE | 3.3.5 CHEVILLES À EXPANSION KWIK BOLT TZ2 Hilti ( Canada ) Corporation | www . hilti . ca | 1-800-363-4458
