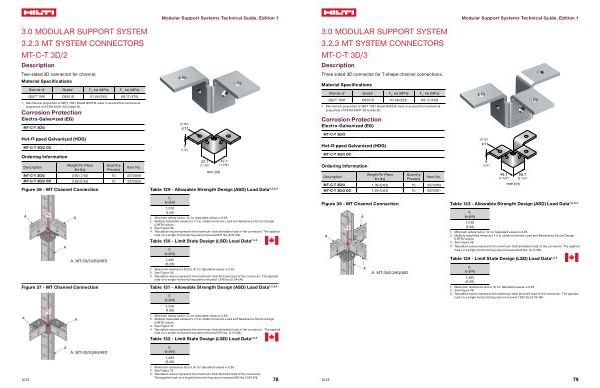

Modular Support Systems Technical Guide, Edition 1
3.0 MODULAR SUPPORT SYSTEM 3.2.3 MT SYSTEM CONNECTORS MT-C-T 3D / 3
Description
Three sided 3D connector for T-shape channel connections. Material Specifications
Standard 1 Grade 1 F y, ksi( MPa) F u
, ksi( MPa) GB / T 1591 Q355 B 51.49( 355) 68.17( 470)
1. Mechanical properties of GB / T 1591 Grade Q355 B meet or exceed the mechanical properties of ASTM A1011 SS Grade 50.
Corrosion Protection
Electro-Galvanized( EG)
MT-C-T 3D / 3
Hot-Dipped Galvanized( HDG)
�����“)
���
MT-C-T 3D / 3 OC
Ordering Information
� ����“)
Description
Weight Per Piece lbs( kg)
Quantity Piece( s)
Item No.
MT-C-T 3D / 3 1.39( 0.63) 10 2272060 MT-C-T 3D / 3 OC 1.39( 0.63) 10 2272061
����
������“)
mm( in)
����
������“)
Figure 38- MT Channel Connection Table 133- Allowable Strength Design( ASD) Load Data 1, 2, 3, 4
F z lb( kN)
1,010( 4.50)
1. Minimum safety factor, Ω, for tabulated values is 2.65. 2. Multiply tabulated values by 1.5 to obtain minimum Load and Resistance Factor Design
( LRFD) values. 3. See Figure 38. 4. Tabulated values represent the maximum total allowable load of the connector. The applied load on a single horizontal leg cannot exceed 845 lbs( 3.77 kN).
Table 134- Limit State Design( LSD) Load Data 1, 2, 3
A. MT-30 / 50 / 60 / 40D
F z lb( kN)
1,405( 6.26)
1. Maximum resistance factor, Φ, for tabulated values is 0.55. 2. See Figure 38. 3. Tabulated values represent the maximum total factored load of the connector. The applied load on a single horizontal leg cannot exceed 1,200 lbs( 5.34 kN).
2023
79
