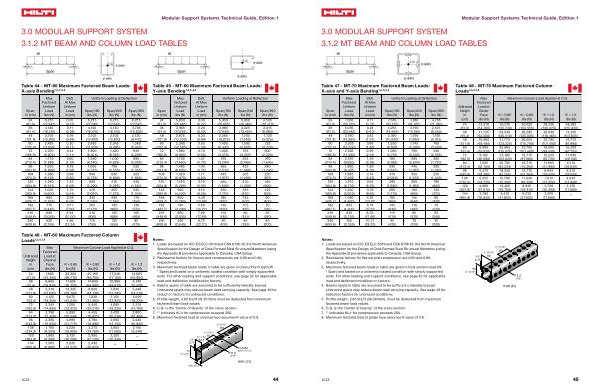

3.0 MODULAR SUPPORT SYSTEM 3.1.2 MT BEAM AND COLUMN LOAD TABLES
Modular Support Systems Technical Guide, Edition 1
Table 47- MT-70 Maximum Factored Beam Loads: X-axis and Y-axis Bending 1, 2, 3, 4, 5
Span in( cm)
Max Factored Uniform Load lbs( N)
Defl. At Max Uniform Load in( cm)
Uniform Loading at Deflection
Span / 180 lbs( N)
Span / 240 lbs( N)
Span / 360 lbs( N)
24
7,585
0.11
7,585
7,180
4,785
( 61.0)
( 33,735)
( 0.27)
( 33,735)
( 31,935)
( 21,280)
36
5,055
0.24
4,255
3,190
2,125
( 91.4)
( 22,485)
( 0.60)
( 18,925)
( 14,185)
( 9,450)
48
3,790
0.42
2,390
1,795
1,195
( 121.9)
( 16,855)
( 1.07)
( 10,630)
( 7,980)
( 5,315)
60
3,035
0.66
1,530
1,145
765
( 152.4)
( 13,500)
( 1.68)
( 6,805)
( 5,090)
( 3,400)
72
2,525
0.95
1,060
795
530
( 182.9)
( 11,230)
( 2.41)
( 4,715)
( 3,535)
( 2,355)
84
2,165
1.29
780
585
390
( 213.4)
( 9,630)
( 3.28)
( 3,465)
( 2,600)
( 1,730)
96
1,895
1.69
595
445
295
( 243.8)
( 8,425)
( 4.29)
( 2,645)
( 1,975)
( 1,310)
108
1,685
2.14
470
350
235
( 274.3)
( 7,495)
( 5.43)
( 2,090)
( 1,555)
( 1,045)
120
1,515
2.64
380
285
190
( 304.8)
( 6,735)
( 6.70)
( 1,690)
( 1,265)
( 845)
144
1,260
3.79
265
195
130
( 365.8)
( 5,600)
( 9.63)
( 1,175)
( 865)
( 575)
168
1,080
5.16
195
145
95
( 426.7)
( 4,800)
( 13.10)
( 865)
( 640)
( 420)
192
945
6.74
145
110
70
( 487.7)
( 4,200)
( 17.11)
( 640)
( 485)
( 310)
216
840
8.53
115
85
55
( 548.6)
( 3,735)
( 21.66)
( 510)
( 375)
( 240)
240
755
10.51
95
70
45
( 609.6)
( 3,355)
( 26.70)
( 420)
( 310)
( 200)
Table 48- MT-70 Maximum Factored Column
Loads 1, 2, 6, 7, 8
Unbraced Height in( cm)
Max Factored Load at Girder Face lbs( N)
K = 0.65 lbs( N)
Maximum Column Load Applied at C. G.
K = 0.80 lbs( N)
K = 1.0 lbs( N)
K = 1.2 lbs( N)
24
12,310
30,510
30,020
29,230
28,285
( 61.0)
( 54,765)
( 135,730)
( 133,555)
( 130,025)
( 125,835)
36
11,735
29,340
28,285
26,630
24,240
( 91.4)
( 52,200)
( 130,510)
( 125,835)
( 118,465)
( 107,835)
48
10,900
27,770
26,025
22,795
19,775
( 121.9)
( 48,485)
( 123,525)
( 115,780)
( 101,400)
( 87,980)
60
8,985
25,865
22,795
19,005
15,225
( 152.4)
( 39,970)
( 115,075)
( 101,400)
( 84,550)
( 67,735)
72
8,105
23,160
19,775
15,225
11,040
( 182.9)
( 36,060)
( 103,025)
( 87,980)
( 67,735)
( 49,130)
84
7,225
20,735
16,715
11,685
8,110
( 213.4)
( 32,150)
( 92,235)
( 74,365)
( 51,980)
( 36,095)
96
6,375
18,240
13,770
8,945
6,210
( 243.8)
( 28,380)
( 81,155)
( 61,265)
( 39,810)
( 27,635)
108
5,555
15,780
11,040
7,070
4.910
( 274.3)
( 24,725)
( 70,200)
( 49,130)
( 31.450)
( 21.840)
120
4,860
13,420
8,945
5.720
3.970
( 304.8)
( 21,615)
( 59,700)
( 39,810)
( 25.460)
( 17.680)
144
( 365.8)
3,785
( 16,845)
9,410
( 41,855)
6,210
( 27,635)
3.970
( 17.680)
**
Notes:
1. Loads are based on ICC-ES ELC-5019 and CSA S136-16, the North American Specification for the Design of Cold-Formed Steel Structural Members( using the Appendix B provisions applicable to Canada), CSA Group.
2. Resistance factors for flexure and compression are 0.90 and 0.80, respectively.
3. Maximum factored beam loads in table are given in total uniform load( W * Span) and based on a uniformly loaded condition with simply supported ends. For other loading and support conditions, see page 32 for applicable load and deflection modification factors.
4. Beams spans in table are assumed to be sufficiently laterally braced. Unbraced spans may reduce beam load carrying capacity. See page 49 for reduction factors for unbraced conditions.
5. Profile weight, 2.63 lbs / ft( 38.39 N / m), must be deducted from maximum factored beam load values. 6. C. G. is the‘ Center of Gravity’ of the cross section. 7. ** indicates KL / r for compression exceeds 200. 8. Maximum factored load at girder face assumes K value of 0.8.
��
��������“)
����“)
����
��������“) ��
